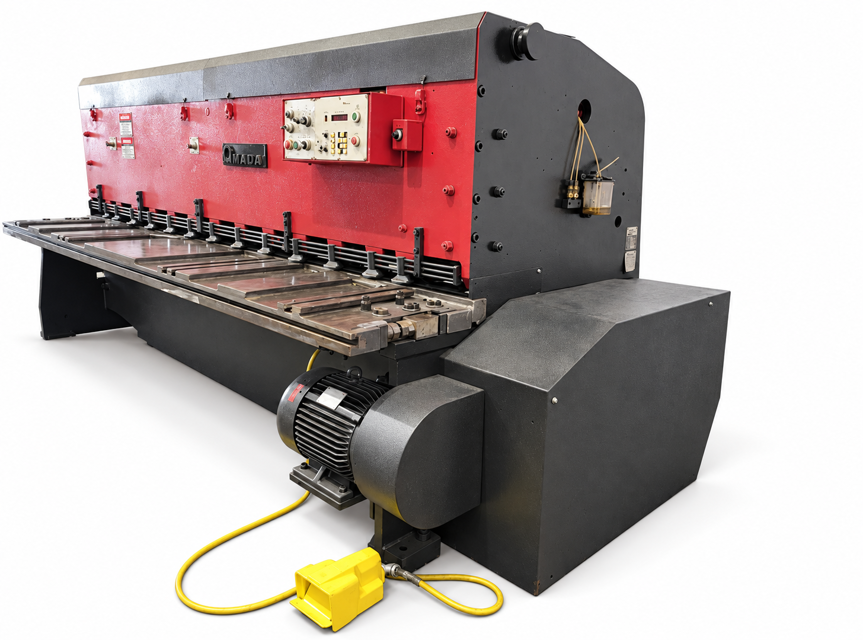

Amada Mechanical Power Squaring Shear M-1260

Remove the cover from the electromagnetic clutch located on the left side frame of the machine.

Adjust the clutch cam angle (β)

Turn the POWER ON/OFF switch ON

Press the foot switch to lower the ram until the left end of the upper blade overlaps approximately 30 mm with the lower blade

Ensure blades do not jam with each other

V Belt Inspection and Adjustment

Check the V belt of the main motor for proper tension.

Adjust the V belt tension if necessary.

Measure the deflection of the V belt when pressed midway between the motor pulley and the flywheel.

Machine Level Check and Adjustment

Check the level of the machine.

Adjust the machine level if necessary.

Check the oil level in the lubrication oil pump

Add oil to the lubrication oil pump if necessary

Push the pump lever three to four times

Add oil to the threads of the carriage through the upper hole using an oiler

Check the hydraulic oil level for the holddowns

Check the upper and lower blades for wear or breakage

Move the backgauge to an optional cutting width (e.g., 50 mm)

Butt a straightedge against the backgauge and check alignment at 50 mm point

Is the 50 mm point aligned with the beam line?

Loosen the bolts holding the bulb holder

Describe the adjustment made to the beam light position
