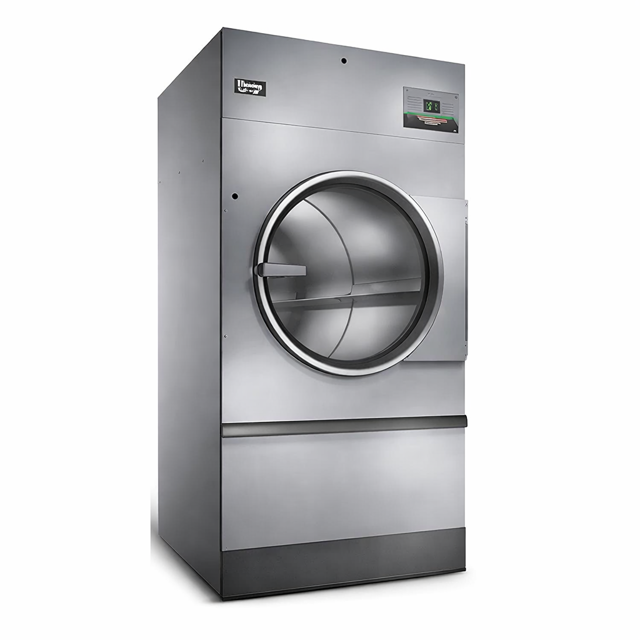

Alliance Laundry Systems Tumble Dryer SAT45N

Hardware and Connections Inspection

Check steam filter and replace if dirty

Remove all front panels and vacuum, including coin drop mechanisms

Check cylinder and front panel seals

Inspect cabinet and inner panels for any damage, replace or repair as needed

Burner and Fire Suppression System Maintenance

Check for error indicators on the display

Cycle the tumble dryer to check if the buzzer activates

Hold the START button to display the drum RPM’s

Record the drum RPM’s displayed as 'r##'

Gas Burner Orifice Pressure Check

Ensure all necessary tools and equipment are available

Remove screw plug from pressure tap

Connect a U-tube manometer to the burner orifice pressure tap

Start tumble dryer and observe pressure once flame is burning

Record the burner orifice pressure

Remove regulator cap and adjust regulator screw to achieve desired pressure

Clean burner tubes using water and a brush

Cylinder and Rear Seal Maintenance

Use a vacuum to clean lint from area around rear seal and idler assembly

Check rear seal and idler assembly for wear

Check all hoses for visible signs of deterioration

Inspect the area surrounding tumble dryers and remove all combustible materials, including lint.

Check cylinder for foreign objects.

Open the lint panel or lint drawer (for stack models).

Remove all accumulated lint in the lint compartment area.

Lightly brush any lint left on the lint screen.

Ensure the lint screen completely covers the opening in the lint screen panel.
