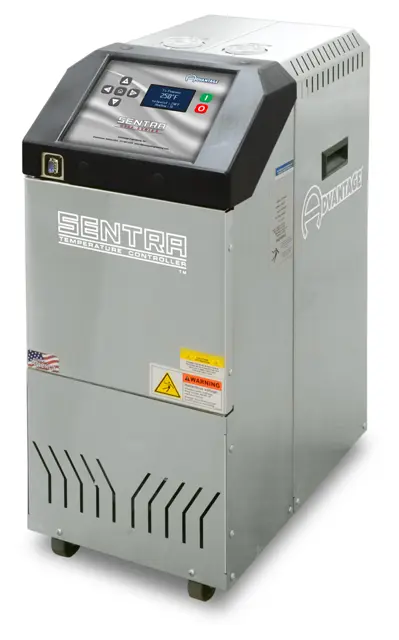

Advantage Temperature Control Unit SK-2435-G

Consult with the Advantage Service Department to determine if your unit can be converted. Record the outcome.

Select the type of conversion needed

Consult factory for other power conversions and record details.

Items Requiring Replacement or Rewiring

Identify items that require replacement or rewiring

Field Voltage Changeover Procedure

Disengage operations and verify all system pressure is relieved and the unit's pressure gauges read '0'.

Disengage operations and ensure all system pressure is relieved

Verify that the unit's pressure gauges read "0"

Verify the Power light on the display is "off"

Remove the lift-off access panel and set aside

Drain machine by removing the pump casing drain plug

Disengage process operations and verify all system pressure is relieved and the unit's pressure gauges read '0'.

Disengage main power supply and verify the Power light on the display is 'off'.

Remove the lift-off access panel and set aside.

Disconnect the valve wiring harness.

Remove the AVT valve's drip cover.

Remove the 2 mounting screws securing the motor/gearbox assembly.

Carefully separate the motor/gearbox from the attached coupling from the valve assembly.

Unplug the sensor probe connection and shake out water

Did the error display change to Solid Red?

Press the Start push button to clear the error display

Cease process operations as outlined in section 3.4 of the manual

Ensure all process pressure is relieved and pressure gauges read '0' pressure

Drain the unit by removing the pump casing drain plug

Disconnect the sensor probe service plug

Disengage process operations and relieve all system pressure.

Verify the Power light on the display is 'off'.

Remove the lift-off access panel and set aside.

Remove the thermoformed panel attached by 4 small screws.

Drain machine by removing the pump casing drain plug.
