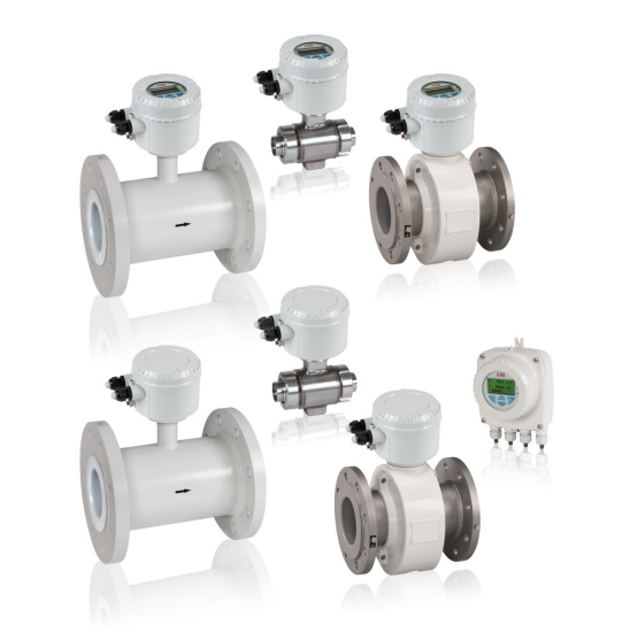

ABB Electromagnetic Flowmeter FEP610

NOTE: If the O-ring gasket is seated incorrectly or damaged, this may have an adverse effect on the housing protection class.

LCD indicator removed without damaging the cable harness

Fixing screw (3x) for the transmitter electronic loosened

Faulty transmitter electronic removed

Connector pulled out of the sensor cable harness without damaging the cable harness

NOTE: The SensorMemory is assigned to the sensor. Ensure that the SensorMemory remains with the sensor and cannot be lost!

NOTE: If the O-ring gasket is seated incorrectly or damaged, this may have an adverse effect on the housing protection class.

Open the transmitter terminal box

Pull out the defective fuse and insert a new fuse

Close the transmitter terminal box

Check that the device is working correctly

NOTE: If the O-ring gasket is seated incorrectly or damaged, this may have an adverse effect on the housing protection class.

Loosen the screws for the LCD indicator (only on integral mount design).

Pull the connector out of the electronic.

Plug in the connector of the new LCD indicator. Ensure that the cable harness is not damaged.

Insert the LCD indicator and screw on /replace the cover.

The following items should be checked annually:

- Ambient conditions (air circulation, humidity); - Seal integrity of the process connections; - Cable entry points cover gaskets and cover screws; - Operational reliability of the power supply feed, the lightning protection, and the grounding.

The flowmeter sensor electrodes must be cleaned when the flowrate information on the transmitter changes when recording identical flowrate volume.

- If a lower flowrate is displayed, the contamination results in a short-circuit.

- If the flowmeter shows a higher flowrate, the contamination is insulating.;

Wait for the LCD display to show the startup process message

The flowmeter is ready for operation with settings as received from the factory

Are the parameter settings correct?
