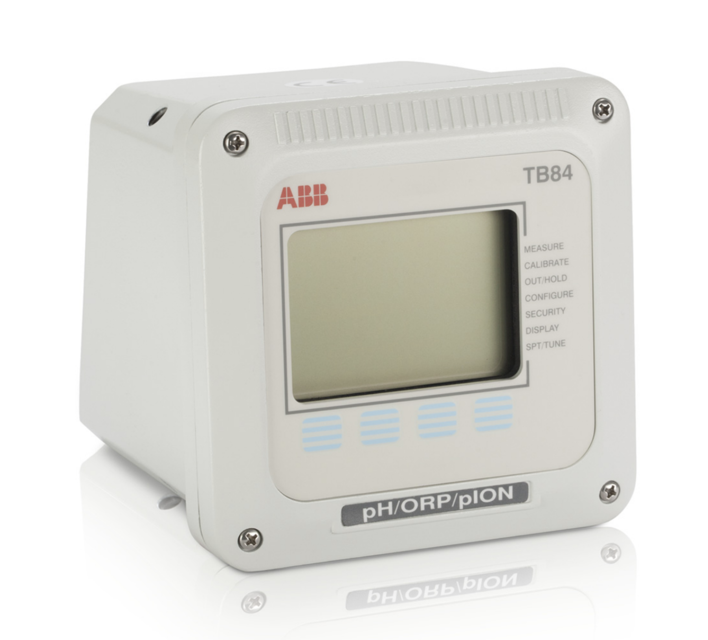

The ABB Analyzer TB84 is a high-performance industrial analyzer designed for precise measurement and analysis in various applications. Known for its reliability and advanced technology, the TB84 ensures optimal performance and efficiency in monitoring processes, making it an essential tool for industrial operations.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for ABB Analyzer TB84

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

ABB Analyzer TB84

Create an account to install this asset package.

Maintenance Plans for ABB Analyzer Model TB84

Integrate maintenance plans directly into your work orders in MaintainX.

Front Bezel Assembly Replacement

Power to the analyzer turned off and discharged for at least 1 minute

Power Supply, pH/ORP/pION Input, Microprocessor PCB Assemblies removed as described in Electronic Assembly Removal/Replacement procedure

Power Supply, pH/ORP/pION Input, and Microprocessor PCB Assemblies attached to the new Front Bezel Assembly

New Front Bezel Assembly installed into the Shell Assembly as described in Electronic Assembly Removal/Replacement procedure

Sign off on the Front Bezel Assembly Replacement

Run this procedure

Electronic Assembly Replacement

Power to the analyzer turned off and discharged for at least 1 minute

Front Bezel Assembly removed by unscrewing the four captive screws and lightly pulling the bezel from the shell

Four 6-32 machine screws that retain the Power Supply and pH/ORP/pION Input PCB assemblies removed

Keypad ribbon cable connector latch released and ribbon cable removed from the connector

Two 6-32 machine screws that retain the Microprocessor PCB Assembly removed

Appropriate PCB assembly replaced and analyzer re-assembled following the reverse of this procedure

Sign off on the electronic assembly replacement

Run this procedure

Shell Assembly Replacement

Power to the analyzer turned off and discharged for at least 1 minute

Front Bezel Assembly removed by unscrewing the four captive screws and lightly pulling the bezel from the shell

Rear Cover Assembly removed by unscrewing the four captive screws

Old Shell Assembly replaced with the new one

Rear Cover and Front Bezel Assemblies installed and eight captive screws tightened

Run this procedure

Rear Cover Assembly Replacement

Power to the analyzer turned off and allowed to discharge for at least 1 minute

Rear Cover Assembly removed by unscrewing the four captive screws

Replaced with the new Rear Cover Assembly

Four captive screws tightened

Run this procedure

Analyzer Maintenance

Warning: This maintenance check requires trained personnel with PPE!

Clean and inspect sensor

Clean and lubricate all gaskets and O-rings

Sensor calibration

Use a rag, acid brush, or tooth brush to remove especially thick scales and accumulations. Take caution in cleaning the glass pH electrode, if present, to prevent glass breakage.

Mechanical cleaning of the sensor with a soft bristle brush

This coating is only present on the outer diameter next to the reference junction and must be intact for the reference diagnostics to function properly.

Sign off on the analyzer maintenance

Run this procedure
