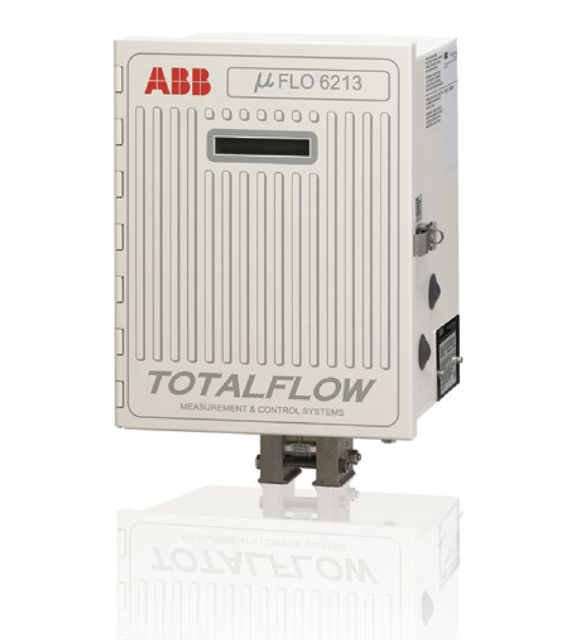

ABB μFLO Computer Totalflow FLO 6213

Create an account to install this asset package.

Maintenance Plans for ABB μFLO Computer Model Totalflow FLO 6213

Integrate maintenance plans directly into your work orders in MaintainX.

Liquid Crystal Display (LCD) Board Replacement

CAUTION: DO NOT remove the μFLO 2100767 Board mounted Lithium battery since it provides power to RAM. It is recommended that historical flow data be downloaded before accessing and removing LCD Board to prevent potential loss of stored data.

J1 memory backup jumper covers the top two pins

Upload the backup of configuration files

μFLO unit door is open

External charging unit J7 is disconnected from the μFLO 2100767 Board

Battery Pack connector J6 is disconnected from the board mounted connector

LCD Board cable connector is disconnected from μFLO 2100767 Board Display Port connector J5

Four Display Board hexagonal mounting standoffs are removed using a 3/16” nut driver

Upload a photo of the removed Display Board

Run this procedure

μFLO Battery Pack Replacement

CAUTION: When removing battery pack, DO NOT remove Lithium battery from μFLO 2100767 Board. This prevents any data stored in Board RAM, from being lost.

J1 memory backup jumper covers the top two pins

“LL” battery alarm is not being displayed on μFLO or lithium battery is > 3.0V

Battery charger disconnected from μFLO 2100767 Board terminals EXT CHGR +/- J7

Battery Cable disconnected from the μFLO 2100767 Board connector J6 before removing battery pack

Battery pack removed from battery compartment

New battery pack inserted into compartment without its terminals touching either the keeper lip on the shelf or any metal surface inside of the unit

Battery pack cable reconnected to μFLO 2100767 Board connector J6

Battery charger reconnected to μFLO 2100767 Board terminals EXT CHGR +/- terminals J7

Run this procedure

Integral Multivariable Transducer (IMV) Replacement

CAUTION: Under no circumstances shall the μFLO IMV cover be removed. Removal of this cover, and entry into interior of IMV, voids IMV warranty. If the IMV requires servicing, the entire assembly must be removed from μFLO, securely packaged for shipping and returned to Totalflow.

J1 memory backup jumper covers the top two pins

Pressure to IMV equalized using meter run installed Manifold high/low control valves

Both lines closed off using μFLO high/low tap valves

Manifold vented to atmosphere using vent valve

High/low Manifold lines from IMV completely disconnected

Disconnect the following associated connectors

μFLO 2” mounting post clamps loosened and μFLO rotated for IMV removal

Eight mounting screws, washers and lock washers securing IMV to μFLO cabinet removed

Run this procedure
