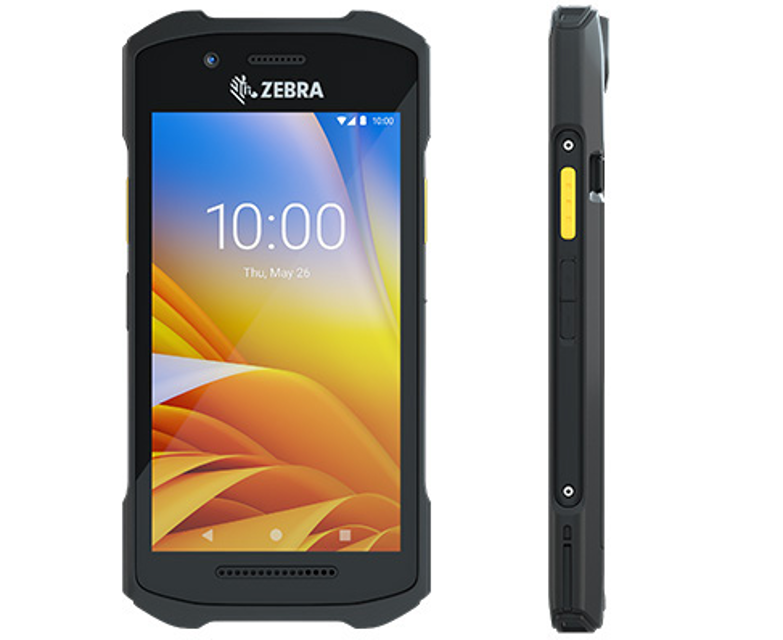

Zebra Handheld Barcode Scanner TC26-HC

Insert the device into the holster with the device exit window facing up

Ensure the display is against the body

Insert the Trigger Handle into the holster with the device exit window facing down

Adjust the belt for device security

Pull the top of the device out of the cradle

Lift the device up and out of the cradle

Is the device free from any visible damage?

Describe any issues encountered during removal

Ensure the cradle is empty and secure

Remove all parts from plastic bags

Insert the rubber gasket into the socket with the flat side against the holder

Insert the arm ball through the nut and into the socket on the holder

Secure nut but do not tighten at this time

Remove protective plastic from suction cup

NOTE: Only use a nano SIM card. Not applicable to TC21.

Press the Power button until the menu appears.

Wait for the device to completely turn off.

If the hand strap is attached, slide the hand strap clip away from the bottom of the device, and then lift.

Press the two battery latches down.

While pressing the latches down, press the two latches in toward the center of the device. The latches must be pressed in completely to release the battery.

Press the Power button until the menu appears.

Wait for the device to completely turn off.

Slide the hand strap clip away from the bottom of the device, and then lift.

Press the two battery latches down.

While pressing the latches down, press the two latches in toward the center of the device.
