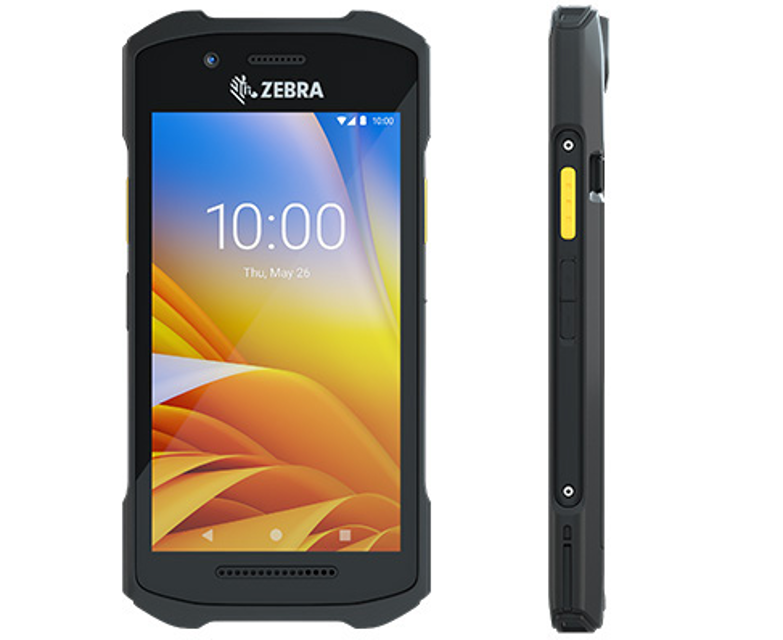

Zebra Handheld Barcode Scanner TC26

Pull the top of the device out of the cradle

Lift the device up and out of the cradle

Is the device free from any visible damage after removal?

Describe any issues encountered during removal

Remove all parts from plastic bags

Insert the rubber gasket into the socket with the flat side against the holder

Insert the arm ball through the nut and into the socket on the holder

Secure nut but do not tighten at this time

Remove protective plastic from suction cup

NOTE: Only use a nano SIM card. Not applicable to TC21.

Press the Power button until the menu appears.

Wait for the device to completely turn off.

If the hand strap is attached, slide the hand strap clip away from the bottom of the device, and then lift.

Press the two battery latches down.

While pressing the latches down, press the two latches in toward the center of the device. The latches must be pressed in completely to release the battery.

Remove the DC power cable from the cradle

Dip the cotton portion of the cotton-tipped applicator in isopropyl alcohol

Rub the cotton portion of the cotton-tipped applicator along the pins of the connector

Rub all sides of the connector with the cotton-tipped applicator

Remove any lint left by the cotton-tipped applicator

Clean other areas of the cradle if grease and dirt are present

Allow alcohol to air dry before applying power to cradle

Caution: Remove bleach from connectors if used

Press the Power button until the menu appears.

Wait for the device to completely turn off.

If the hand strap is attached, slide the hand strap clip away from the bottom of the device, and then lift.

Press the two battery latches down.

While pressing the latches down, press the two latches in toward the center of the device.

Lift the battery from the device.
