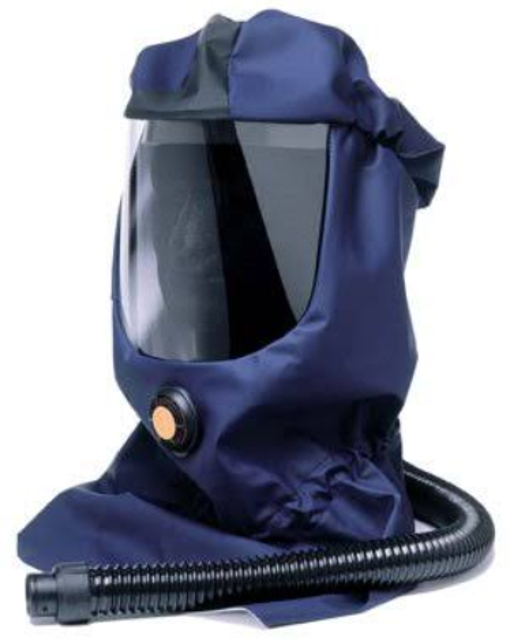

Sundström Safety Powered Respirator Face Shield SR 530
Create an account to install this asset package.
Maintenance Plans for Sundström Safety Powered Respirator Face Shield Model SR 530
Integrate maintenance plans directly into your work orders in MaintainX.
1 Yearly Powered Respirator Face Shield Maintenance
Powered Respirator Face Shield Visual Inspection
Check that all components are intact and undamaged
Inspect the face shield for cracks or scratches
Inspect the breathing hose for wear or damage
Powered Respirator Face Shield Performance Check
Is the airflow from the respirator adequate?
Measure the airflow rate from the respirator
Powered Respirator Face Shield Cleaning
Clean the face shield with appropriate cleaning solution
Sweatband Change
Sweatband Removal
Pick away one end of the sweatband with the tape
Pull the sweatband off
Sweatband Installation
Remove the protective paper from the new sweatband
Fit the new sweatband onto the forehead strap
Face Seal Change
Removing the Old Face Seal
Release the hooks from the head harness.
Release the face seal by pulling its frame to release the pins from the visor unit holes.
Remove the face seal.
Installing the New Face Seal
Thread the new face seal over the visor unit flange, aligning the centre markings.
Press the face seal frame down until a clicking sound indicates the pins are in place.
Secure the hooks to the head harness where the sweatband is relieved.
Parts for Sundström Safety Powered Respirator Face Shield SR 530
Access the parts list for your equipment in MaintainX.
O-Ring For Breathing Hose. Fig. 3B
R06-0202
Face Seal, Fig. 23
T06-0504
Breathing Hose For Sr 540 Ex
R06-0501
Flat Gasket For Hose Sr 540 Ex. Fig. 3A
R06-0506
Set Of Valves For Sr 540 Ex
R06-2004
O-Ring For Breathing Hose. Fig. 3B
R06-0202
Face Seal, Fig. 23
T06-0504
Breathing Hose For Sr 540 Ex
R06-0501
Flat Gasket For Hose Sr 540 Ex. Fig. 3A
R06-0506
Set Of Valves For Sr 540 Ex
R06-2004
O-Ring For Breathing Hose. Fig. 3B
R06-0202
Face Seal, Fig. 23
T06-0504
Breathing Hose For Sr 540 Ex
R06-0501
Flat Gasket For Hose Sr 540 Ex. Fig. 3A
R06-0506
Set Of Valves For Sr 540 Ex
R06-2004
