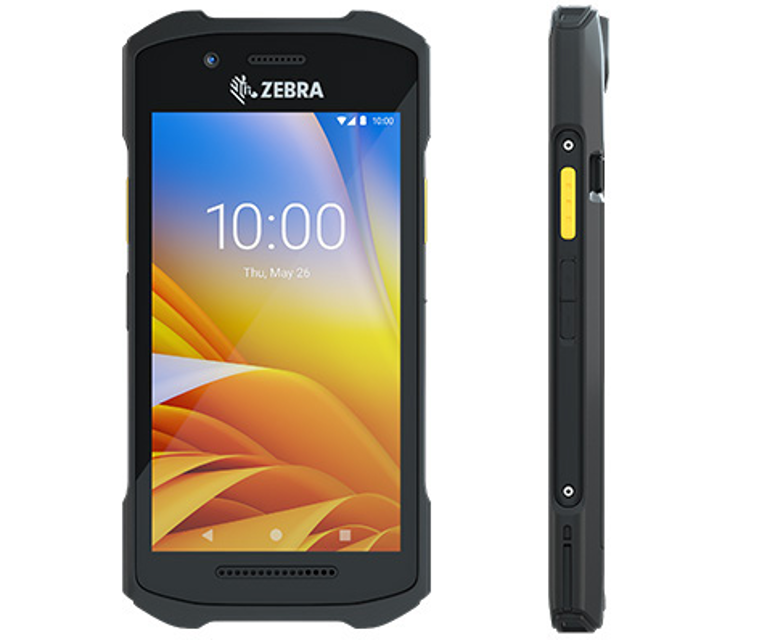

Zebra Handheld Barcode Scanner TC21-HC

Create an account to install this asset package.

Maintenance Plans for Zebra Handheld Barcode Scanner Model TC21-HC

Integrate maintenance plans directly into your work orders in MaintainX.

MicroSD Card Replacement

Power Off Device

Press the Power button until the menu appears.

Touch Power off.

Wait for the device to completely turn off.

Remove Battery and Access Door

If the hand strap is attached, slide the hand strap clip away from the bottom of the device, and then lift.

Press the two battery latches down.

While pressing the latches down, press the two latches in toward the center of the device. The latches must be pressed in completely to release the battery.

Lift the battery from the device.

Run this procedure

Mount Assembly

Remove all parts from plastic bags

Insert the rubber gasket into the socket with the flat side against the holder

Insert the arm ball through the nut and into the socket on the holder

Secure nut but do not tighten at this time

Remove protective plastic from suction cup

Run this procedure

Device maintenance

Screen Care

Use a Zebra approved capacitive compatible stylus for the screen

Ensure no sharp objects are used on the screen

Avoid dropping the device or subjecting it to strong impact

Environmental Protection

Protect the device from temperature extremes

Ensure the device is not stored in dusty, damp, or wet locations

Cleaning and Maintenance

Use a soft lens cloth to clean the device

Run this procedure

Battery Connector Cleaning

Preparation

Remove the main battery from the mobile computer

Cleaning with Isopropyl Alcohol

Dip the cotton portion of the cotton-tipped applicator in isopropyl alcohol

Rub the cotton portion of the applicator across the connectors on the battery and terminal sides

Repeat the cleaning process with isopropyl alcohol

Dry Cleaning

Use a dry cotton-tipped applicator and repeat the cleaning process

Inspection

Run this procedure

SIM Card Replacement

NOTE: Only use a nano SIM card. Not applicable to TC21.

Power Off Device

Press the Power button until the menu appears.

Touch Power off.

Wait for the device to completely turn off.

Remove Battery and Access Door

If the hand strap is attached, slide the hand strap clip away from the bottom of the device, and then lift.

Press the two battery latches down.

While pressing the latches down, press the two latches in toward the center of the device. The latches must be pressed in completely to release the battery.

Run this procedure
