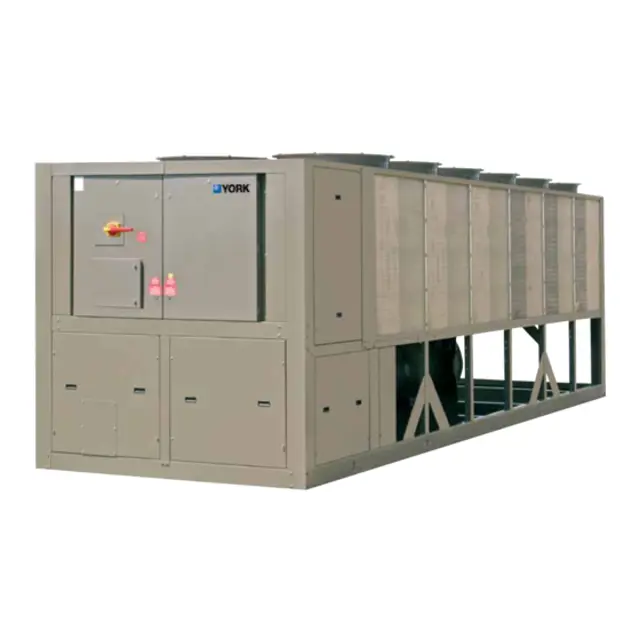

York Screw Chiller YCIV0157VA46

Connect a high-capacity vacuum pump with indicator to the charging valves as shown in Figure 147 on page 306 and Figure 148 on page 306

Ensure all the system valves including manual valves and EEVs are 100% open

Ensure that all valves to the atmosphere are closed with flare caps in place, if applicable

Operate the vacuum pump until a pressure of 5,000 μm is reached

To start the 8-hour vacuum hold test, close the system charging valve connection to the vacuum pump

Hold the vacuum obtained in Step 4 in the system for 8 hours

Check for pressure change with the chiller at the same temperature

The following maintenance checks should be carried out on a daily basis by the operator/customer

The units are not generally user serviceable

No attempt should be made to rectify faults or problems found during daily checks unless competent and equipped to do so

If in any doubt, contact your local Johnson Controls Service Agent

Unit status: Press the STATUS key on the keypad and ensure no fault messages are displayed

Operating conditions: Read the operating pressures and temperatures at the control panel using the display keys

Check that these are within the operating limitations given in the manual

Compressor oil level: Check the compressor oil level after the compressor has been operating on FULL LOAD for approximately half an hour

Check oil level in the oil separator sight glass

Check liquid line sight glass / moisture indicator

Record system operating temperatures

Record system operating pressures

Check condenser coils for dirt/debris

Clean condenser coils if necessary

Sign off on the weekly chiller check

Warning: This procedure should only be performed by trained personnel.

Was the system pressure tested and evacuated at the factory?

Enter the leak rate (acceptable limit is 0.1 oz/year at DWP)

Are all joints tight and leak-free?

If any leaks are indicated, they must be repaired immediately.

Were the leaks stopped by ensuring that face seal nuts and flange bolts are correctly torqued?

For any major repair, the refrigerant charge must be removed and the system leak checked using reliable methods like a pressure test.

This procedure must be performed by an industry certified technician

Maintain a record of this procedure for warranty purposes

Superheat on the economizer feed to the compressor
