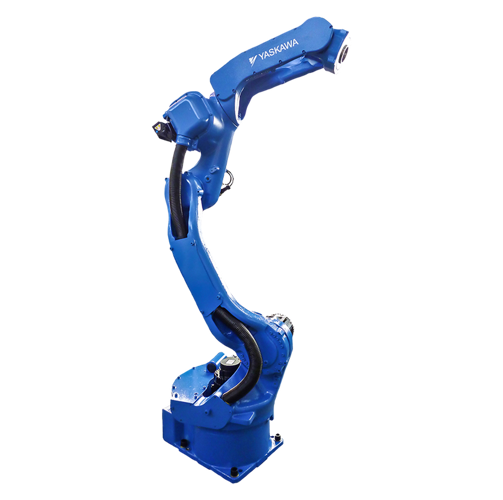

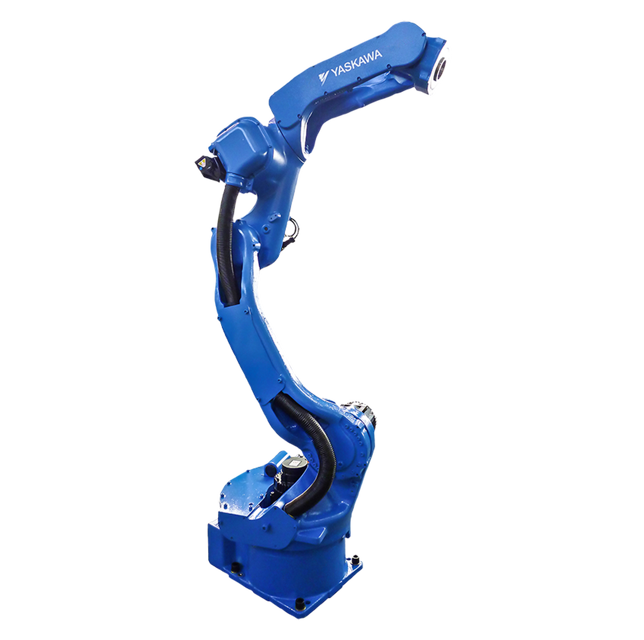

Yaskawa Motoman Handling Robot MH24

Danger to life due to electric shock. Maintenance and inspections must be performed by specified personnel.

Turn OFF the main power supply and put up the required warning sign, e.g. 'Do not turn the power on!'

Install a switch-on guard as prescribed.

If you have any questions regarding disassembly or repair, please contact the local YASKAWA branch office.

Before removing the connector of the encoder cable to perform maintenance or inspection, connect the spare battery unit.

If a battery alarm appears or after the robot has been operated for 36,000 hours, the battery must be exchanged.

The battery units are installed as shown in the figure 'The location of the battery unit.'

If a battery alarm occurs in the robot controller, the battery pack must be changed using the following procedure:

Turn the robot controller to the main power supply

Danger to life due to electric shock

Maintenance and inspections must be performed by specified personnel.

The instructions given below must be followed before taking maintenance and inspection measures:

► Turn OFF the main power supply.

► Put up the required warning sign, e.g. "Do not turn the power on!"

► Install a switch-on guard as prescribed.

If you have any questions regarding disassembly or repair, please contact the local YASKAWA branch office.

Danger to life due to electric shock. Maintenance and inspections must be performed by specified personnel.

Turn OFF the main power supply.

Put up the required warning sign, e.g. 'Do not turn the power on!'

Install a switch-on guard as prescribed.

If you have any questions regarding disassembly or repair, please contact the local YASKAWA branch office.

Home position data is lost. Before removing the connector of the encoder cable to perform maintenance or inspection, connect the spare battery unit.

Wiring Harness Replacement (S-, L-, U-, R-, B-, and T-Axis): Was the wiring harness replaced?

Wiring Harness Replacement (B- and T-Axis): Was the wiring harness replaced?

Protective Tube: Refer to the manual 'OPTIONS FOR PROTECTIVE TUBING (VELCRO TYPE) REPLACING PROCEDURES'.

Danger to life due to electric shock. Maintenance and inspections must be performed by specified personnel.

Turn OFF the main power supply.

Put up the required warning sign, e.g. 'Do not turn the power on!'

Install a switch-on guard as prescribed.

If you have any questions regarding disassembly or repair, please contact the local YASKAWA branch office.

Before removing the connector of the encoder cable to perform maintenance or inspection, connect the spare battery unit.

Check alignment mark correspondence and damage at the zero position.

If the working area is dirty, it must be cleaned.

Danger to life due to electric shock. Maintenance and inspections must be performed by specified personnel.

Turn OFF the main power supply.

Put up the required warning sign, e.g. 'Do not turn the power on!'

Install a switch-on guard as prescribed.

If you have any questions regarding disassembly or repair, please contact the local YASKAWA branch office.

Before removing the connector of the encoder cable to perform maintenance or inspection, connect the spare battery unit.

Fastening Bolts of the Base Plate: Tighten loose screws (replace if necessary).

Fixing Screws of the Cover: Tighten loose screws (replace if necessary).

Power Input Module: Check for loose connections.
