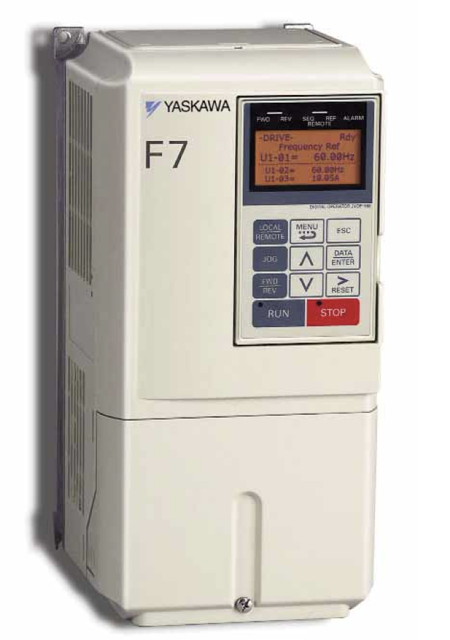

Yaskawa F7 Drive CIMR-F7U25P5

Yaskawa F7 Drive CIMR-F7U25P5

Create an account to install this asset package.

Maintenance Plans for Yaskawa F7 Drive Model CIMR-F7U25P5

Integrate maintenance plans directly into your work orders in MaintainX.

1 Yearly F7 Drive Inspection

Check mark

Warning: This inspection requires trained personnel with PPE!

Check mark

Inspect conductors and wire connections for loose lugs, screws, wires, hot spots, corrosion, bent conductors, breakage, cracking, discoloration, and spacing

Check mark

Inspect terminal blocks for looseness or damage

Check mark

Check DC bus capacitors for leakage, ruptures, expansion, capacitance, and insulation resistance

Check mark

Inspect relays and contactors for noise and contact discoloration

Check mark

Check soft charge resistors for cracks and discoloration

Check mark

Check control circuit operation, including speed reference voltage/current and I/O contact operation

Check mark

Inspect the Cooling Fans/Fins & Heatsink for loose connectors

Check mark

Check the digital operator for key functionality, and cleanliness

Run this procedureArrow right

Heatsink Cooling Fan Replacement

Check mark

A cooling fan is attached to the bottom of the Drive.

Check mark

If the Drive is installed using the mounting holes on the back of the Drive, the cooling fan can be replaced without removing the Drive from the installation panel.

Check mark

If the Drive is mounted with the heatsink external to the enclosure, the cooling fan can only be replaced by removing the Drive from the enclosure.

Check mark

Removing the Heatsink Cooling Fan

Check mark

1. Turn off the input power before removing and installing the heatsink cooling fan.

Check mark

2. Press in on the right and left sides of the fan cover in the direction of arrows "1" and then pull the fan out in the direction of arrow "2".

Check mark

3. Pull out the cable connected to the fan from the fan cover and disconnect the power connector.

Check mark

4. Open the fan cover on the left and right sides in the direction of arrows "3" and remove the fan cover from the fan.

Check mark

Installing the Heatsink Cooling Fan

Run this procedureArrow right

10 Yearly DC Bus and Control Power Fuses Replacement

Check mark

Warning: This procedure should be performed by a trained technician

Check mark

Standard replacement period is based on the following usage conditions: Ambient temperature: Yearly average of 86°F / 30°C, Load factor: 80% maximum, Operating time: 12 hours maximum per day

Check mark

Old DC bus fuse removed

Check mark

New DC bus fuse installed

Check mark

Old control power fuse removed

Check mark

New control power fuse installed

Check mark

Technician's signature

Run this procedureArrow right

5 Yearly Capacitors Replacement

Check mark

Warning: This procedure requires trained personnel with PPE!

Check mark

Standard replacement period is based on the following usage conditions: Ambient temperature: Yearly average of 86°F / 30°C, Load factor: 80% maximum, Operating time: 12 hours maximum per day

Check mark

DC bus capacitors need replacement?

Check mark

PCB capacitors need replacement?

Check mark

Soft charge contactor need replacement?

Check mark

Upload a photo of the replaced parts

Check mark

Sign off on the capacitors replacement

Run this procedureArrow right

F7 Drive Periodic Inspection

Check mark

Warning: Ensure the three-phase power is disconnected and locked out before starting the inspection

Check mark

Motor is not vibrating or making unusual noises

Check mark

No abnormal heat generation from the Drive or motor

Check mark

Ambient temperature

Check mark

Output current value shown on U1-03

Check mark

Cooling fan in the Drive is operating normally

Check mark

Warning: Do not touch terminals immediately after the power has been turned off to avoid electric shock

Check mark

All screws and bolts on external terminals, mounting bolts, and connectors are tightened

Check mark

Cooling fins are clean

Run this procedureArrow right

Parts for Yaskawa F7 Drive CIMR-F7U25P5

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Power PCB (3PCB)

ETP617052

Control PCB (1PCB)

ETC618390-S3020

Terminal PCB (2PCB)

ETC618410

Power Module

STR001304

DC Bus Fuse

FU-002099

Power PCB (3PCB)

ETP617052

Control PCB (1PCB)

ETC618390-S3020

Terminal PCB (2PCB)

ETC618410

Power Module

STR001304

DC Bus Fuse

FU-002099

Power PCB (3PCB)

ETP617052

Control PCB (1PCB)

ETC618390-S3020

Terminal PCB (2PCB)

ETC618410

Power Module

STR001304

DC Bus Fuse

FU-002099
