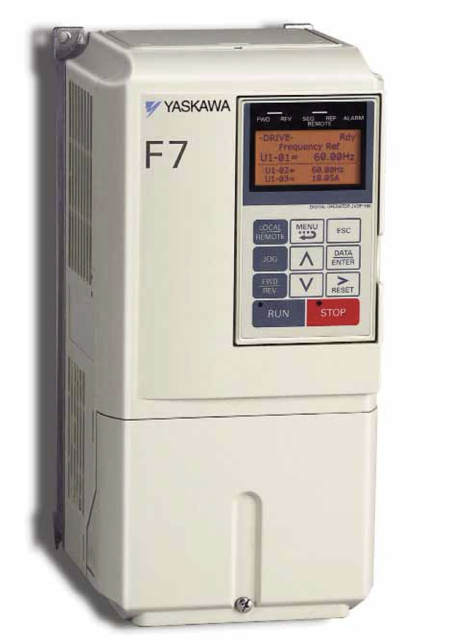

Yaskawa F7 Drive CIMR-F7U21P5

Warning: Ensure the three-phase power is disconnected and locked out before starting the inspection.

Motor is not vibrating or making unusual noises

No abnormal heat generation from the Drive or motor

Output current value shown on U1-03

Cooling fan in the Drive is operating normally

Warning: Do not touch terminals immediately after the power has been turned off to avoid electric shock.

All screws and bolts on external terminals, mounting bolts, and connectors are tightened

A cooling fan is attached to the bottom of the Drive.

If the Drive is installed using the mounting holes on the back of the Drive, the cooling fan can be replaced without removing the Drive from the installation panel.

If the Drive is mounted with the heatsink external to the enclosure, the cooling fan can only be replaced by removing the Drive from the enclosure.

Removing the Heatsink Cooling Fan

1. Turn off the input power before removing and installing the heatsink cooling fan.

2. Press in on the right and left sides of the fan cover in the direction of arrows "1" and then pull the fan out in the direction of arrow "2".

3. Pull out the cable connected to the fan from the fan cover and disconnect the power connector.

4. Open the fan cover on the left and right sides in the direction of arrows "3" and remove the fan cover from the fan.

Installing the Heatsink Cooling Fan

Warning: This procedure requires trained personnel with PPE!

Replace the cooling fan(s) every 2 to 3 years (20,000 hours) with a new part.

Note: The standard replacement period is based on the following usage conditions:

Enter the current hour meter reading

Sign off on the cooling fan replacement

The terminal card can be removed and mounted without disconnecting the control wiring.

Important: Always confirm that input power is removed and the Charge LED is not lit before removing or mounting the terminal card.

1. Remove the terminal cover on the Drive.

2. Remove the Digital Operator and front cover from the Drive.

3. Remove the wires connected to FE and/or NC on the terminal card.

4. Loosen the mounting screws on the left and right sides of the terminal card until they are free; It is not necessary to remove the mounting screws completely, as they are captive and self-rising.

5. Pull the terminal card out in the direction of the block arrow.

Warning: This procedure should be performed by a trained technician

Standard replacement period is based on the following usage conditions: Ambient temperature: Yearly average of 86°F / 30°C, Load factor: 80% maximum, Operating time: 12 hours maximum per day

New control power fuse installed
