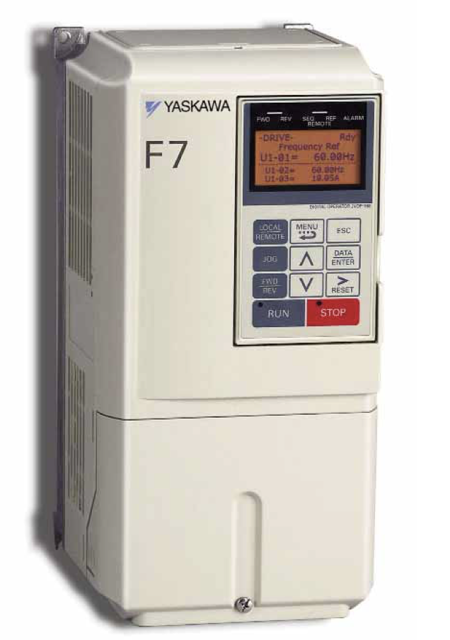

The Yaskawa F7 Drive CIMR-F7U4185 is a high-performance industrial drive designed for precise motor control and energy efficiency. Ideal for various applications, this drive offers advanced features and robust reliability, ensuring optimal performance in demanding environments.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Find all the essential guides in one place.
Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more
Pre-built workflows to keep your asset running smoothly.
Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more
Integrate maintenance plans directly into your work orders.
Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more
Access the parts list for your equipment in MaintainX.
Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Yaskawa F7 Drive CIMR-F7U4185
Create an account to install this asset package.
Integrate maintenance plans directly into your work orders in MaintainX.
Terminal Card Replacement
The terminal card can be removed and mounted without disconnecting the control wiring.
Important: Always confirm that input power is removed and the Charge LED is not lit before removing or mounting the terminal card.
Removing the Terminal Card
1. Remove the terminal cover on the Drive.
2. Remove the Digital Operator and front cover from the Drive.
3. Remove the wires connected to FE and/or NC on the terminal card.
4. Loosen the mounting screws on the left and right sides of the terminal card until they are free; It is not necessary to remove the mounting screws completely, as they are captive and self-rising.
5. Pull the terminal card out in the direction of the block arrow.
Mounting the Terminal Card
F7 Drive Periodic Inspection
Warning: Ensure the three-phase power is disconnected and locked out before starting the inspection
Motor is not vibrating or making unusual noises
No abnormal heat generation from the Drive or motor
Ambient temperature
Output current value shown on U1-03
Cooling fan in the Drive is operating normally
Warning: Do not touch terminals immediately after the power has been turned off to avoid electric shock
All screws and bolts on external terminals, mounting bolts, and connectors are tightened
Cooling fins are clean
2 Yearly / 20000 Hourly Cooling Fan Replacement
Warning: This procedure requires trained personnel with PPE!
Replace the cooling fan(s) every 2 to 3 years (20,000 hours) with a new part.
Note: The standard replacement period is based on the following usage conditions:
Usage conditions
Old fan removed successfully?
New fan installed successfully?
Enter the current hour meter reading of the machine
Sign off on the cooling fan replacement
5 Yearly Capacitors Replacement
Warning: This procedure requires trained personnel with PPE!
Standard replacement period is based on: Yearly average of 86°F / 30°C, Load factor: 80% maximum, Operating time: 12 hours maximum per day
DC bus capacitors need replacement?
PCB capacitors need replacement?
Soft charge contactor need replacement?
Upload a photo of the replaced parts
Sign off on the capacitors replacement
1 Yearly F7 Drive Inspection
Warning: This inspection requires trained personnel with PPE!
Inspect conductors and wire connections for loose lugs, screws, wires, hot spots, corrosion, bent conductors, breakage, cracking, discoloration, and spacing
Inspect terminal blocks for looseness or damage
Check DC bus capacitors for leakage, ruptures, expansion, capacitance, and insulation resistance
Inspect relays and contactors for noise and contact discoloration
Check soft charge resistors for cracks and discoloration
Check control circuit operation, including speed reference voltage/current and I/O contact operation
Inspect the Cooling Fans/Fins & Heatsink for loose connectors
Check the digital operator for key functionality, and cleanliness
Access the parts list for your equipment in MaintainX.
Diode Module
SID003119
Control PCB (1PCB)
ETC618390-S3020
Internal Fan
FAN001054
DC Bus Fuse
FU-000895
Gate Drive PCB (3PCB)
ETC617240
Diode Module
SID003119
Control PCB (1PCB)
ETC618390-S3020
Internal Fan
FAN001054
DC Bus Fuse
FU-000895
Gate Drive PCB (3PCB)
ETC617240
Diode Module
SID003119
Control PCB (1PCB)
ETC618390-S3020
Internal Fan
FAN001054
DC Bus Fuse
FU-000895
Gate Drive PCB (3PCB)
ETC617240
