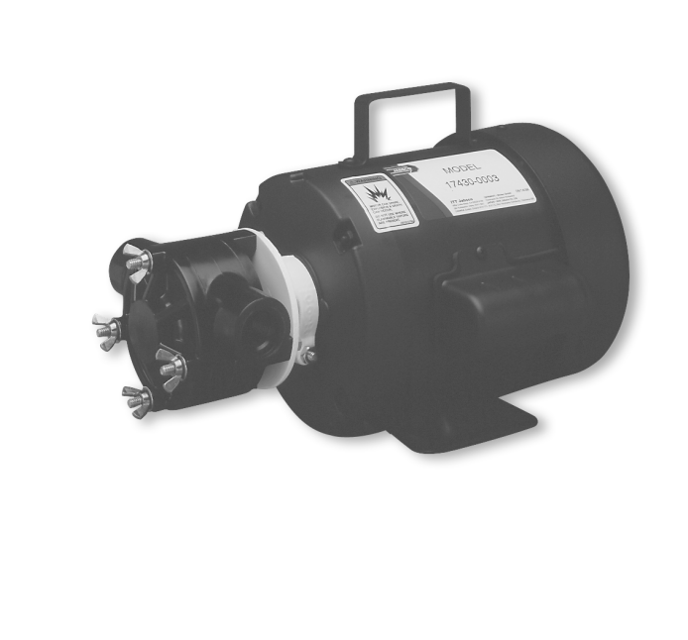

Xylem Self-Priming Pump 17430-0003
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Xylem Self-Priming Pump 17430-0003
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Xylem Self-Priming Pump 17430-0003
Create an account to install this asset package.
Maintenance Plans for Xylem Self-Priming Pump Model 17430-0003
Integrate maintenance plans directly into your work orders in MaintainX.
Seal Replacement
Disassembly
Remove wing nuts, washers and end cover
Remove pump head from seal housing
Remove O-rings from body grooves
Push impeller from body bore
Remove seal housing
Seal Removal
Insert screwdriver through seal seat bore and pry seat and grommet from seal housing
Remove drive sleeve from shaft
Impeller Replacement
Disassembly
Remove wing nuts, washers and end cover
Remove pump head from seal housing
Remove O-rings from body grooves
Push impeller from body bore
Installation
Install new impeller in lubricated body bore by grasping hub and with a rotary motion push it into the body bore
Replace O-rings in body grooves
Position the body over the through bolts against the seal housing
Parts for Xylem Self-Priming Pump 17430-0003
Access the parts list for your equipment in MaintainX.
Wing Nut
91107-0030
Washer
91601-0040
Stud
91090-0040
End Cover
17434-0000
Impeller Nitrile
14281-003
Wing Nut
91107-0030
Washer
91601-0040
Stud
91090-0040
End Cover
17434-0000
Impeller Nitrile
14281-003
Wing Nut
91107-0030
Washer
91601-0040
Stud
91090-0040
End Cover
17434-0000
Impeller Nitrile
14281-003
