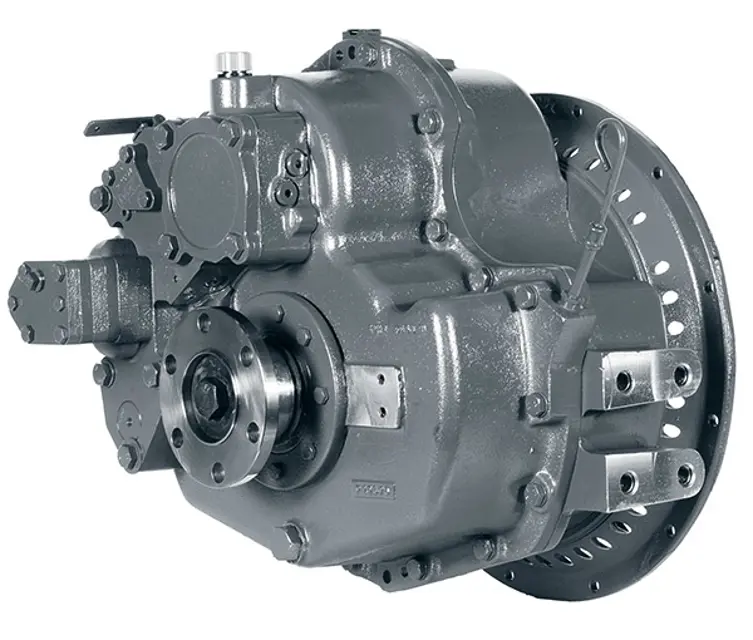

Twin Disc Marine Transmission MG-5075SC

Need answers fast?
Explore the manual using AI.

Twin Disc Marine Transmission MG-5075SC
Twin Disc Marine Transmission MG-5075SC

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Twin Disc Marine Transmission MG-5075SC

Twin Disc Marine Transmission MG-5075SC

Create an account to install this asset package.

Maintenance Plans for Twin Disc Marine Transmission Model MG-5075SC

Integrate maintenance plans directly into your work orders in MaintainX.

2000 Hourly / 6 Monthly Flexible Input Coupling Inspection

Check mark

G. Flexible Input Coupling

Check mark

Do not obstruct the flywheel housing vents, which will prevent the free flow of air for cooling the coupling. Life of the coupling may be reduced if the ambient temperature of the air around the coupling is outside the operating range.

Check mark

Operating air temperature

Check mark

Temperature within the range of -6°C (22°F) and 82°C (180°F)?

Check mark

If possible, visually inspect the coupling after the first 100 hours of operation, and every 2000 hours thereafter, or every six months, whichever comes first.

Check mark

Visual inspection of the coupling performed?

Check mark

Torsional vibration, misalignment, degradation by contaminants (oil), heat, ultraviolet radiation, and excessive system torque can cause cracks or other signs of distress to appear on the surface of the rubber.

Check mark

Any signs of distress on the surface of the rubber?

Check mark

These conditions affect the life of the coupling element. If coupling access is restricted, inspection may be possible only at engine overhaul or whenever the transmission is separated from the engine.

Run this procedureArrow right

Initial 100 Hours Flexible Input Coupling Inspection

Check mark

Warning: Do not obstruct the flywheel housing vents, which will prevent the free flow of air for cooling the coupling.

Check mark

Operating air temperatures maintained between -6°C (22°F) and 82°C (180°F)?

Check mark

Enter the current operating hours of the machine

Check mark

Visual inspection of the coupling performed after the first 100 hours of operation?

Check mark

Any signs of torsional vibration, misalignment, degradation by contaminants (oil), heat, ultraviolet radiation, and excessive system torque?

Check mark

Any cracks or other signs of distress on the surface of the rubber?

Check mark

Is coupling access restricted?

Check mark

Frequent check of the flywheel housing vents performed?

Check mark

Any accumulation of residue at the vents?

Run this procedureArrow right

4 Weekly Heat Exchanger Check

Check mark

Warning: This check requires trained personnel with PPE!

Check mark

Heat exchangers have anodes installed at the inlet and outlet heads

Check mark

Enter the percentage of the rod disintegrated

Check mark

Is over one half of the rod disintegrated?

Check mark

If over one half of the rod is disintegrated, replace it to assure effective protection

Check mark

Excessive corrosion of the anode indicates electrolytic action

Check mark

Make a careful inspection to determine if this action is caused by a short circuit or an external grounded electric current

Check mark

Is the action caused by a short circuit or an external grounded electric current?

Check mark

If either of these conditions is found, do what is required to correct it to avoid frequent replacement of the anodes

Run this procedureArrow right

Initial 8 Hours Rebuilt Transmission Filter and Oil Change

Check mark

Warning: This procedure requires trained personnel with PPE!

Check mark

Check the suction screen and filter element after eight hours of operation

Check mark

Describe the material found on the suction screen and filter element

Check mark

Did you find chips or shavings in the filter element?

Check mark

If the filter is clean, install a new filter element and then change the oil and filter element after 1000 hours of service

Check mark

If the filter is dirty, change the element and operate for another eight hours. Check the filter again

Check mark

Continue this cycle until the filter is clean and then change the oil and filter after 1000 hours of service, or more often if conditions warrant

Check mark

Situations involving debris in the hydraulic system will require that heat exchangers and all connecting lines and hoses be thoroughly cleaned

Check mark

If the heat exchanger cannot be disassembled, or if it cannot be assured that all debris is removed, the heat exchanger should be replaced

Run this procedureArrow right

1000 Hourly / 6 Monthly New Transmission Filter and Oil Change

Check mark

Change oil and filter element after each 1000 hours of operation, or six months, whichever comes first. Change the oil more frequently if conditions warrant.

Check mark

F. Suction Strainer

Check mark

Remove and clean the suction strainer at every oil change or sooner if necessary. See illustrations in Section 6.2 for the location of the suction strainer for your transmission.

Check mark

Draining

Check mark

Drain the transmission by removing the oil drain plug from the rear/bottom of the transmission. See the illustrations in Section 6.2 or service literature for your transmission for location of transmission and filter drain plugs.

Check mark

NOTE: Dispose of used oil and oil filters in accordance with federal, state or local laws. Exercise precautions to prevent environmental contamination during any transmission servicing procedure.

Check mark

Filling

Check mark

1. Remove the breather or the oil fill closure from the top of transmission case.

Check mark

2. Pour new oil through breather or closure opening. Fill with recommended clean oil, taking necessary precautions to prevent entry of dirt or debris. (See lubrication plate on transmission and information transcribed to the front of this manual for additional oil information.);

Run this procedureArrow right
