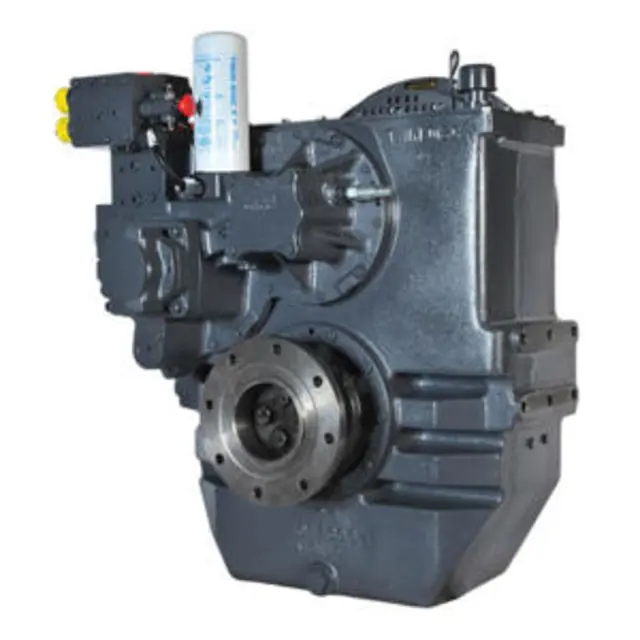

Twin Disc Marine Transmission MGX-5136SC

Change oil and filter element after each 1000 hours of operation, or six months, whichever comes first. Change the oil more frequently if conditions warrant.

Remove and clean the suction strainer at every oil change or sooner if necessary. See illustrations in Section 6.2 for the location of the suction strainer for your transmission.

Drain the transmission by removing the oil drain plug from the rear/bottom of the transmission. See the illustrations in Section 6.2 or service literature for your transmission for location of transmission and filter drain plugs.

NOTE: Dispose of used oil and oil filters in accordance with federal, state or local laws. Exercise precautions to prevent environmental contamination during any transmission servicing procedure.

1. Remove the breather or the oil fill closure from the top of transmission case.

2. Pour new oil through breather or closure opening. Fill with recommended clean oil, taking necessary precautions to prevent entry of dirt or debris. (See lubrication plate on transmission and information transcribed to the front of this manual for additional oil information.);

Engine running at low idle and marine transmission in neutral?

Enter the transmission oil temperature

Transmission control in NEUTRAL?

Enter the transmission oil pressure

Pressure registered within 15 seconds?

Transmission filled to LOW mark on the dipstick?

With a new transmission, change the oil and filter element within first 50 hours of operation. Change the oil more frequently if conditions warrant.

Remove and clean the suction strainer at every oil change or sooner if necessary. See illustrations in Section 6.2 for the location of the suction strainer for your transmission.

Drain the transmission by removing the oil drain plug from the rear/bottom of the transmission. See the illustrations in Section 6.2 or service literature for your transmission for location of transmission and filter drain plugs.

NOTE: Dispose of used oil and oil filters in accordance with federal, state or local laws. Exercise precautions to prevent environmental contamination during any transmission servicing procedure.

1. Remove the breather or the oil fill closure from the top of transmission case.

2. Pour new oil through breather or closure opening. Fill with recommended clean oil, taking necessary precautions to prevent entry of dirt or debris. (See lubrication plate on transmission and information transcribed to the front of this manual for additional oil information.);

If your unit is equipped with a lubrication fitting, grease the oil seals at the output end of the transmission output shaft through the lubrication fitting with water pump grease.

See the illustrations in Section 6.2 for location of the lubrication fitting.

Apply grease approximately every 100 hours when boat is docked. No other lubrication is required.

NOTE: Preferred grease is one with lithium soap, NLGI consistency #2 for component temperatures above 20° C (68° F).

Did you apply the grease to the oil seals at the output end of the transmission output shaft?

Did you use the preferred grease with lithium soap, NLGI consistency #2?

Sign off on the lubrication process

Warning: This check requires trained personnel with PPE!

Heat exchangers have anodes installed at the inlet and outlet heads

Enter the percentage of the rod disintegrated

Is over one half of the rod disintegrated?

If over one half of the rod is disintegrated, replace it to assure effective protection

Excessive corrosion of the anode indicates electrolytic action

Is the action caused by a short circuit or an external grounded electric current?

If either of these conditions is found, do what is required to correct it to avoid frequent replacement of the anodes

Are the anodes corroded with foreign material?
