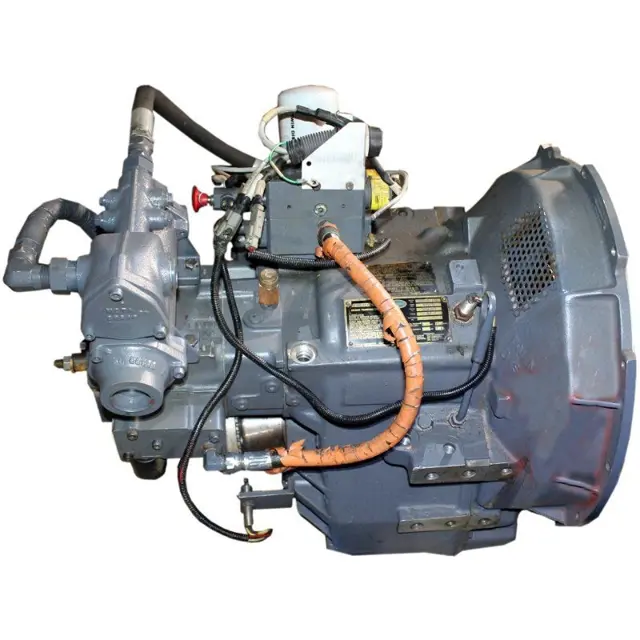

Twin Disc Marine Transmission MGX-5114SC

Warning: This check requires trained personnel with PPE!

Heat exchangers have anodes installed at the inlet and outlet heads

Enter the percentage of the rod disintegrated

Is over one half of the rod disintegrated?

If over one half of the rod is disintegrated, replace it to assure effective protection.

Excessive corrosion of the anode indicates electrolytic action

Make a careful inspection to determine if this action is caused by a short circuit or an external grounded electric current.

Is the corrosion caused by a short circuit or an external grounded electric current?

If either of these conditions is found, do what is required to correct it to avoid frequent replacement of the anodes.

Change oil and filter element after each 1000 hours of operation, or six months, whichever comes first. Change the oil more frequently if conditions warrant.

Remove and clean the suction strainer at every oil change or sooner if necessary. See illustrations in Section 6.2 for the location of the suction strainer for your transmission.

Drain the transmission by removing the oil drain plug from the rear/bottom of the transmission. See the illustrations in Section 6.2 or service literature for your transmission for location of transmission and filter drain plugs.

NOTE: Dispose of used oil and oil filters in accordance with federal, state or local laws. Exercise precautions to prevent environmental contamination during any transmission servicing procedure.

1. Remove the breather or the oil fill closure from the top of transmission case.

2. Pour new oil through breather or closure opening. Fill with recommended clean oil, taking necessary precautions to prevent entry of dirt or debris. (See lubrication plate on transmission and information transcribed to the front of this manual for additional oil information.);

Warning: Do not obstruct the flywheel housing vents

Operating air temperatures maintained between -6°C (22°F) and 82°C (180°F)

Enter the current operating hours of the machine

Visual inspection of the coupling after the first 100 hours of operation

Any signs of torsional vibration, misalignment, degradation by contaminants (oil), heat, ultraviolet radiation, and excessive system torque

Any cracks or other signs of distress on the surface of the rubber

Coupling access is not restricted

Frequent check of the flywheel housing vents

Any accumulation of residue at the vents

Warning: This procedure requires trained personnel with PPE!

Check the suction screen and filter element after eight hours of operation

Describe the material collected from rags or towels used in the parts cleaning process

Describe the chips or shavings found

If the filter is clean, install a new filter element and then change the oil and filter element after 1000 hours of service

If the filter is dirty, change the element and operate for another eight hours. Check the filter again

Continue this cycle until the filter is clean and then change the oil and filter after 1000 hours of service, or more often if conditions warrant

Situations involving debris in the hydraulic system will require that heat exchangers and all connecting lines and hoses be thoroughly cleaned

See the transmission lubrication plate. Capacity given will be the internal quantity required to fill the transmission to its proper level, but may not include the quantity to fill the external hoses and heat exchanger. Check oil level per Section 3.3, Start-Up.

1. Place the transmission control in NEUTRAL.

2. As soon as engine starts, check the transmission oil pressure (oil pressure gauges are required for all installations). Pressure should register within 15 seconds. If no pressure is indicated, stop the engine and determine the cause.

3. Check the oil level as follows.

a. Fill the transmission to LOW mark on the dipstick.

Run the engine at idle until oil temperature reaches operating range.

b. Continue running at idle and check the oil level with the oil level gauge (dipstick). The level should be at the FULL mark on the gauge. Add or remove oil as necessary to bring the level to the FULL mark on the gauge.
