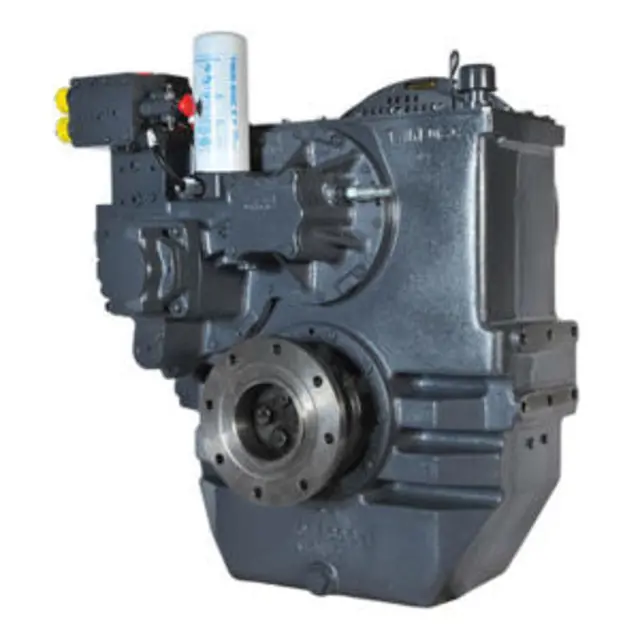

Twin Disc Marine Transmission MGX-5136RV

With a new transmission, change the oil and filter element within first 50 hours of operation. Change the oil more frequently if conditions warrant.

Remove and clean the suction strainer at every oil change or sooner if necessary. See illustrations in Section 6.2 for the location of the suction strainer for your transmission.

Drain the transmission by removing the oil drain plug from the rear/bottom of the transmission. See the illustrations in Section 6.2 or service literature for your transmission for location of transmission and filter drain plugs.

NOTE: Dispose of used oil and oil filters in accordance with federal, state or local laws. Exercise precautions to prevent environmental contamination during any transmission servicing procedure.

1. Remove the breather or the oil fill closure from the top of transmission case.

2. Pour new oil through breather or closure opening. Fill with recommended clean oil, taking necessary precautions to prevent entry of dirt or debris. (See lubrication plate on transmission and information transcribed to the front of this manual for additional oil information.);

Warning: This procedure requires trained personnel with PPE!

Check the suction screen and filter element after eight hours of operation

Describe the condition of the suction screen and filter element

Check for lint or other material that may collect from rags or towels used in the parts cleaning process

Check for chips or shavings particularly if the transmission has had a problem that caused debris in the system

For units with spin-on filters, this will require cutting the filter element apart to access the element core

If the filter is clean, install a new filter element and then change the oil and filter element after 1000 hours of service

If the filter is dirty, change the element and operate for another eight hours. Check the filter again

Change oil and filter element after each 1000 hours of operation, or six months, whichever comes first. Change the oil more frequently if conditions warrant.

Remove and clean the suction strainer at every oil change or sooner if necessary. See illustrations in Section 6.2 for the location of the suction strainer for your transmission.

Drain the transmission by removing the oil drain plug from the rear/bottom of the transmission. See the illustrations in Section 6.2 or service literature for your transmission for location of transmission and filter drain plugs.

NOTE: Dispose of used oil and oil filters in accordance with federal, state or local laws. Exercise precautions to prevent environmental contamination during any transmission servicing procedure.

1. Remove the breather or the oil fill closure from the top of transmission case.

2. Pour new oil through breather or closure opening. Fill with recommended clean oil, taking necessary precautions to prevent entry of dirt or debris. (See lubrication plate on transmission and information transcribed to the front of this manual for additional oil information.);

Warning: This check requires trained personnel with PPE!

Heat exchangers have anodes installed at the inlet and outlet heads

Enter the percentage of the rod disintegrated

Is over one half of the rod disintegrated?

If over one half of the rod is disintegrated, replace it to assure effective protection.

Excessive corrosion of the anode indicates electrolytic action

Make a careful inspection to determine if this action is caused by a short circuit or an external grounded electric current.

Is the action caused by a short circuit or an external grounded electric current?

If either of these conditions is found, do what is required to correct it to avoid frequent replacement of the anodes.

Warning: Do not obstruct the flywheel housing vents

Is the ambient temperature of the air around the coupling within the operating range (-6°C to 82°C)?

Enter the current operating air temperature

Is there any sign of torsional vibration, misalignment, degradation by contaminants (oil), heat, ultraviolet radiation, and excessive system torque?

Upload a photo of the coupling for visual inspection

Are the flywheel housing vents clear?

Is there an accumulation of residue at the vents?

Describe the condition of the coupling
