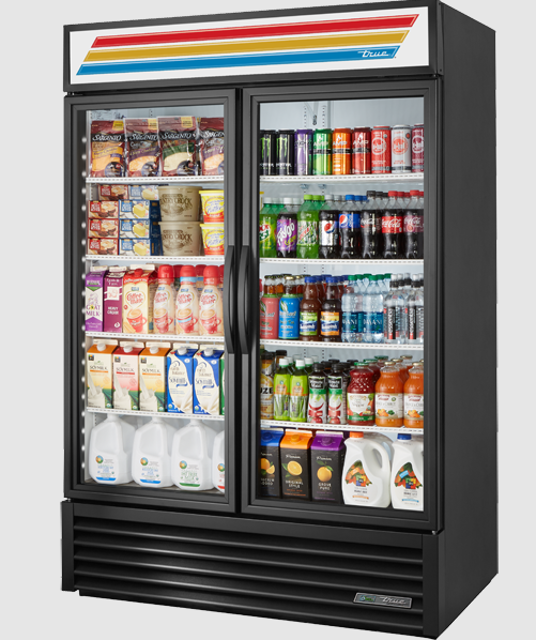

True Manufacturing Refrigeration Equipment GDM-49-HC~TSL01

Position the doors as described below

Lift the door and tilt the top of the door back until the rollers are out of the top channel

Swing the bottom of the door out of the bottom channel

For Three-Door Units: Slide the right door to the left and align the left edge with the beginning of the TRUE Logo

Lift the right door out of the track

Slide the left door to the right and align the right edge with the end of the TRUE Logo

Lift the left door out of the track

Ensure basic safety precautions are followed when using electrical appliances.

Avoid using a pressure washer or hose to clean the appliance.

Use eye protection to avoid injury from sharp fins.

Remove the front louvered grill from the cabinet.

Clean dirt from the front fins of the condensing coil with a stiff bristle brush.

Verify visibility through the coil and observe the condenser fan blade spinning using a flashlight.

Avoid using steel wool, abrasive or chlorine-based products

Do not use stainless steel cleaners on plastic or powder-coated parts

Check for scratches from wire brushes, scrapers, or steel pads

Ensure no deposits are left on stainless steel surfaces

Avoid using chlorides on stainless steel surfaces

Apply white vinegar, ammonia, or commercial detergent with a soft cloth or sponge

Ensure cabinet is installed in final location and leveled

Completely close the slide doors and check for openings

Adjust the doors if there are gaps or openings

Loosen the roller using a 7/16" wrench or adjustable wrench and 1/8" Allen wrench

Move the roller along the slotted hole

Tighten the roller into place after adjustment
