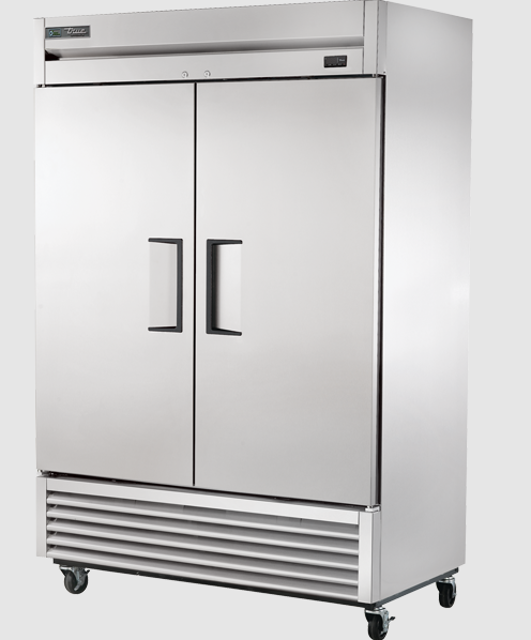

True Manufacturing Refrigeration Equipment T-49-HC

Ensure basic safety precautions are followed when using electrical appliances.

Check that all tools are available

Remove lower grill assembly for slide door models

Take off lower grill assembly by removing two screws in lower corners or snap lock tabs.

Loosen screws holding the top pivot pins, swing grill up and remove frame hooks from pivot pins at top of louver.

Remove lower grill assembly for swing door models

WARNING: Ensure power to the unit is turned off or unplugged before starting.

Remove the light bulb carefully.

Dispose of the old bulb according to local ordinances.

Ensure power to the unit is turned off or unplugged

Squeeze the plastic lampshield together and pull away from the door

Push the bulb down while pulling the spring activated lampholder up

Refer to Image 3 for lampshield removal

Disconnect the electrical power to the unit

Vacuum or brush the dirt, lint, or debris from the finned condenser coil

Blow out the condenser with compressed air if there is significant dirt build-up

Reconnect the electrical power to the unit
