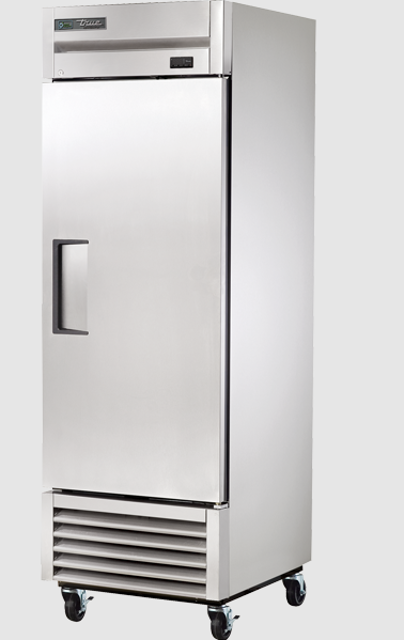

True Manufacturing Refrigeration Equipment T-23-HC

Disconnect the electrical power to the unit

Clean the finned condenser coil

Vacuum or brush the dirt, lint, or debris from the finned condenser coil

Blow out the condenser with compressed air if there is significant dirt build-up

Reconnect the electrical power to the unit

Contact TRUE Manufacturing Service Department if you have any questions

Ensure basic safety precautions are followed when using electrical appliances.

Check that all tools are available

Remove lower grill assembly for Slide Door Models

Take off lower grill assembly by removing two screws in lower corners or snap lock tabs.

Loosen screws holding the top pivot pins, swing grill up and remove frame hooks from pivot pins at top of louver.

Remove lower grill assembly for Swing Door Models

Ensure power to the unit is turned off or unplugged

Be aware of local ordinances for disposing old bulbs

Carefully unscrew the light bulb

Ensure power to the unit is turned off or unplugged

IDL (Integrated Door Lighting) Bulb Replacement

Squeeze the plastic lampshield together and pull away from the door

Push the bulb down while pulling the spring activated lampholder up

Remove the lampshield to reveal the bulb

Pull the top lamp holder up and push the bulb down to remove it
