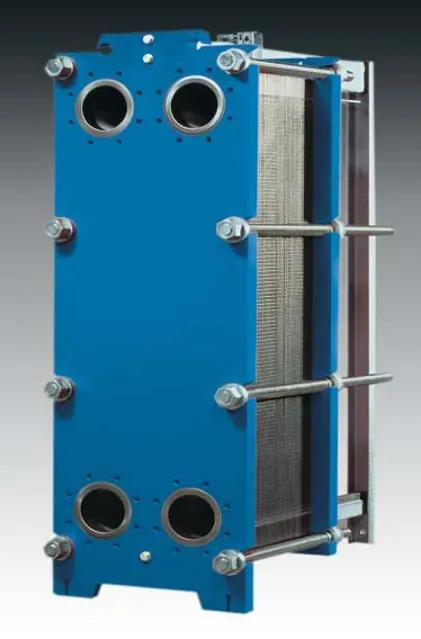

Tranter Heat Exchanger GXD-140

Gradually decrease the pressure of both fluids simultaneously until all pressure is relieved.

Ensure the unit is cooled to a warm temperature before opening to prevent personal injury and gasket loosening.

Completely drain fluids from the unit.

Disconnect all connections to the 'E' moveable frame.

Lubricate all bolts prior to disassembly.

Loosen and remove all bolts except those indicated by a 'filled circle' in the sketch for the size unit involved.

Loosen the four remaining bolts in any left-right sequence at 1/4 in. increments until they can be lifted out.

Select the back flushing method to use

Ensure clean water is available for flushing

Set up the system for reverse flow pattern

Is the reverse flow pattern established correctly?

Arrange piping and valves for reverse flow on product side

Set the fixed period of time for reverse flow operation (in minutes)

Gradually decrease the pressure of both fluids simultaneously until all pressure is relieved.

Is the unit cooled to a warm temperature before opening?

Completely drain fluids from the unit.

Disconnect all connections to the 'E' moveable frame.

Lubricate all bolts prior to disassembly.

Loosen and remove all bolts except those indicated by a 'filled circle' in the sketch.

Loosen the four remaining bolts in any left-right sequence at 1/4 in. increments until they can be lifted out.

Gradually decrease the pressure of both fluids simultaneously until all pressure is relieved.

Is the unit cooled to a warm temperature before opening?

Completely drain fluids from the unit.

Disconnect all connections to the 'E' moveable frame.

Lubricate all bolts prior to disassembly.

Loosen and remove all bolts except those indicated by a 'filled circle'.

Loosen the four remaining bolts in any left-right sequence at 1/4 in. increments until they can be lifted out.

Coat upper guide bars with lubricant

Lubricate rollers in the moveable end frame

Lubricate rollers in the connecting frames
