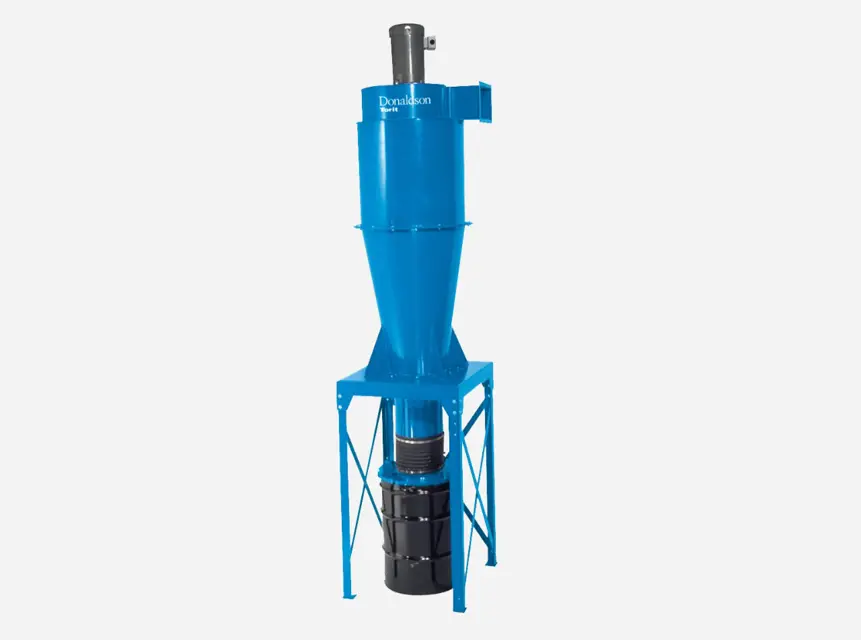

Torit Dust Collector 44CYC

Hopper discharge gates are open and doors, drum covers, and gaskets are firmly in place

Overall performance of the collector is satisfactory

Dust disposal is monitored and dust drawers or drums are emptied when 2/3 full

Collected material is kept a minimum of 10-inches from the end of the cone on hopper models

Fan is turned OFF and filter bags are manually shaken at the end of each shift

Adequate air volume is restored by shaking

If adequate air volume cannot be restored by shaking, please contact your Donaldson Aftermarket Sales Representative to order replacement bags

Under normal operating conditions, filter bags are replaced every two years

Unit’s model and serial number when ordering replacement bags

1. Check all electrical connections for tightness and contact.

2. Check for and remove all loose items in or near the inlet and outlet of the unit.

3. Check that all remote controls are wired into the control system and all service switches are in the OFF position.

4. Check that all optional accessories are installed properly and secured.

5. Check that hopper discharge is open and the storage container is sealed, if equipped.

7. Turn the fan motor ON then OFF to check for proper rotation by referencing the rotation arrow located on the motor’s mounting plate.

- To reverse rotation, single-phase power supply: Follow manufacturer’s instructions on the motor’s nameplate.

- To reverse rotation, three-phase power supply: Turn electrical power OFF at source and switch any two leads on the output-side of the blower-motor starter.
