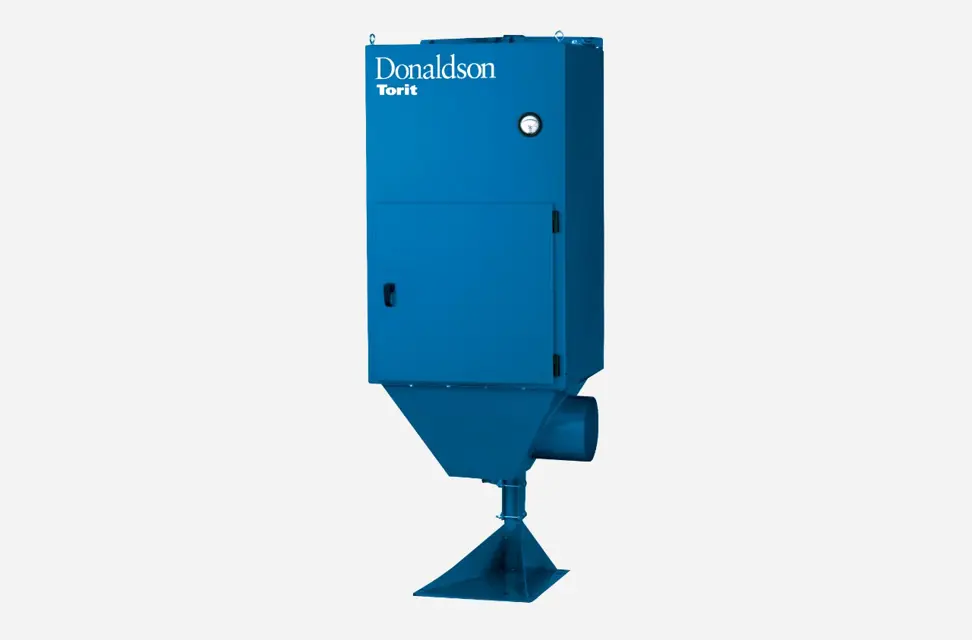

Torit Mist Collector WSO 15

1. Place a suitable container under the P-trap, turn the collector OFF and remove the pipe plug.

2. Allow fluid and particulate to drain.

3. Inspect interior of P-trap and remove any material blockage.

4. Use thread sealant and replace pipe plug.

5. Refill the P-trap with suitable fluid before restarting the collector.

- P-Trap with Y-Strainer, Screen Cleaning and Removal

1. Place a suitable container under the screen clean-out valve, turn the collector OFF, close the P-trap valve, then open the screen clean-out valve.

2. Allow fluid and particulate to drain.

!CAUTION: Lock out electrical power sources before performing service or maintenance work.

Monitor overall performance of the collector.

Monitor exhaust. Exhaust should remain visually clean throughout filter life. If leaks are visible, check the filters for positive gasket seals.

Monitor hopper drainage. If slow or stopped, check hopper for obstructions and clean as necessary.

Check that the P-trap is full. Refill if low or dry.

Monitor pressure drop across the primary filter and afterfilter (if equipped) using the appropriate differential pressure gauge.

See Filter Cleaning and Replacement section.

For a typical installation, Donaldson recommends filter replacement when the gauge indicator needle is half way into the red zone.

See Filter Cleaning and Replacement section.

CAUTION: Lock out electrical power sources before performing service or maintenance work.

Check all electrical connections for tightness and contact.

Check for and remove all loose items in or near the inlet and outlet of the unit.

Check that all remote controls are wired into the control system, and all service switches are in the OFF position.

Check that all optional accessories are installed properly and secured.

Check that all filters are properly installed and filter access doors are closed and latched.

Check that hopper discharge is open and the storage container is sealed, if equipped.

Fill P-trap if equipped, or close faucet valve on drain collection container if used.

First Stage Filter Cleaning and Replacement

First stage filter cleaned and re-installed

CAUTION: Use proper safety and protective equipment when removing contaminants and filters. Dirty filters may be heavier than they appear. Use care when removing filters to avoid personal injury. Do not drop filters.

Filter cartridge removed and disposed of properly

New filter placed on the filter retention platform, gasket side up

Filter retention lever lifted and access door closed
