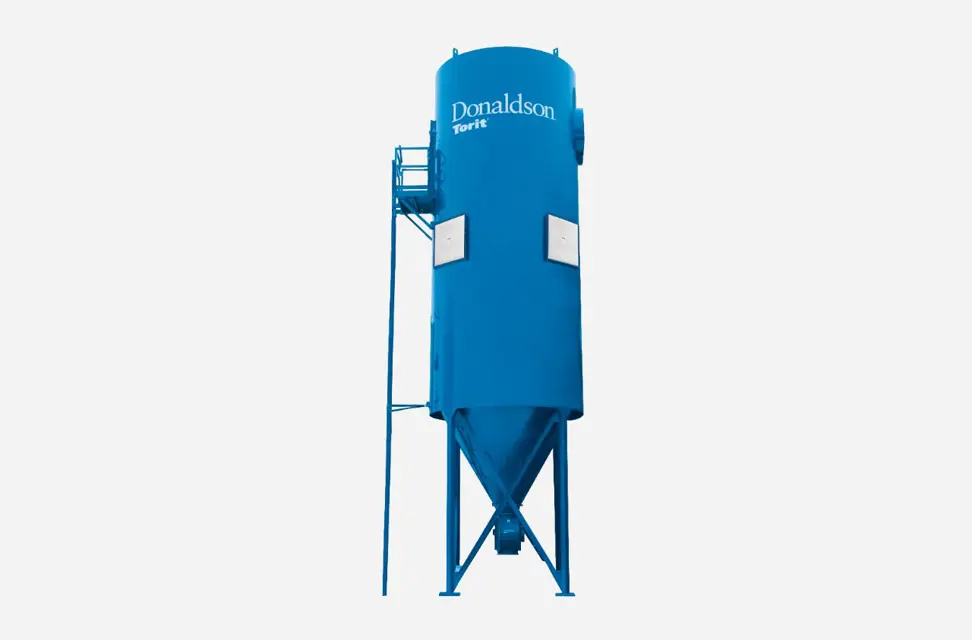

Torit Baghouse 232RFT

Check all electrical connections for tightness and contact.

Check for and remove all loose items in or near the inlet and outlet of the unit.

Check that all remote controls are wired into the control system, and all service switches are in the OFF position.

Check that all optional accessories are installed properly and secured.

Check that hopper discharge is open and the storage container is sealed, if equipped.

Turn the cleaning air blower ON then OFF to check for proper rotation by referencing the rotation arrow located on the belt guard. Proper rotation is counterclockwise.

To reverse rotation, three-phase power supply: Turn electrical power OFF at source and switch any two leads on the output-side of the fan-motor starter.

Turn the system blower ON then OFF to check for proper rotation. Look for manufacturer's rotation arrow.

1. Monitor overall performance of the collector.

3. Monitor pressure drop across filters.

• Lock out electrical power sources before service or maintenance work is performed.

• Turn air supply to collector OFF and depressurize air tank before service work is performed.

Check condition of the clean-air plenum. If dust accumulation is present, check filter bags for wear, tears or loose seals.

Check solenoid and diaphragm valve operation.

Check door seals and replace as necessary.

Check cleaning arm drive chain and positive-displacement blower belt tension.

Check positive-displacement blower and gear reducer oil levels.

Add oil through breather mounting holes or other oil fill locations. Positive-displacement blowers come with an initial supply of Mobil® 1 15-50 synthetic oil. If this type is not available, use the single viscosity oils as shown.

Select the oil type based on the temperature

Sign off on the 3 Monthly Baghouse Maintenance
