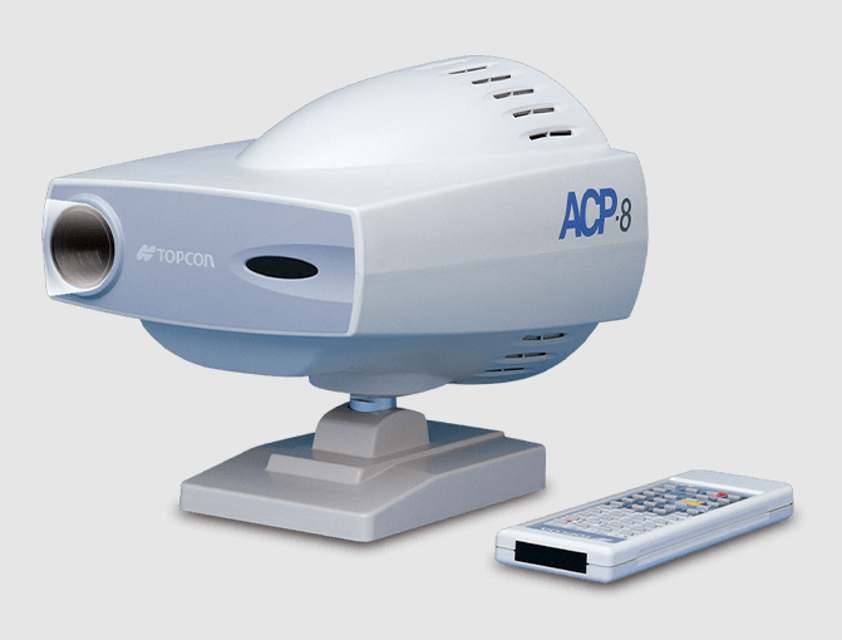

Topcon Auto Chart Projector ACP-8

Avoid using volatile solvents on the plastic area of the body

Wipe the cover and the operating panel with a dry cloth when dirty

Prepare a mixture of neutral detergent and hot water

Dampen a cloth with the mixture and wring out excess water

Wipe off the dirt with the damp cloth

Wipe the lens lightly with a dry soft cloth

Unplug the power cable before removing the fuse cover

Ensure the power switch is turned 'off' and disconnect the power supply plug

Squeeze both sides of the fuse holder and remove it

Remove the blown fuses and insert the spare fuses on the cap of the fuse holder

Install the fuse holder back into place

Use only attached fuses (For 100, 120V range: T-1.6A, 250V For 220, 230, 240V range: T-1A, 250V)

Check that the power cable is not installed on the body with the fuse cover removed

Unplug the power cable to avoid electric shock.

Ensure the lamp has cooled down before replacement to avoid burns.

Remove the lamp cover screw and remove the cover.

Remove the lamp attaching screws, hold the socket and remove the lamp.

Hold the socket and the lamp flange and remove the lamp from the socket.

Turn the power switch 'off' and unplug the power cable

Remove the lamp cover screws and the screws on the lower cover (four in total)

Lift the top cover to remove it

Change the DIP switch 5 and 6 according to the diagram on page 27

Remove the battery cover from the back of the remote controller

Change the channel switch S1 and S2 according to the diagram
