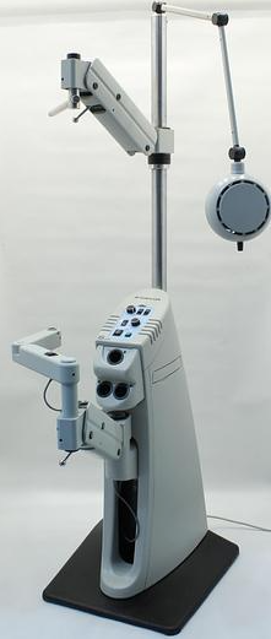

Topcon Ophthalmic Stand IS 2500

Ensure the equipment is powered off

Locate the diagonal arm with three black screws

Lower or raise the arm slowly until the small Hex screw is aligned with the access hole in the arm housing

Turn the Hex screw clockwise approximately 1/4 turn

Is the resistance adequate when the brake is fully activated and the auxiliary arm is pressed down?

Disconnect the main power cord prior to performing any service.

Read the User Manual to verify the IS-2500 functions.

Check that all cords and/or cables are securely connected and that the green power LED comes on when the system power button is pressed.

Turn power switch off and unplug the power cord plug from the wall outlet.

Remove the black plastic panel by unscrewing the (2) round-head Hex screws

Lock the instrument arm at its maximum elevated position

Insert the end of a 5/32 Hex wrench into the castellated (slotted) part of the nut

Direction to turn the nut for adjustment

Adjustment of Optional Middle Arm

Insert the end of a 3/16 Hex wrench into the castellated (slotted) part of the nut

Direction to turn the nut for adjustment
