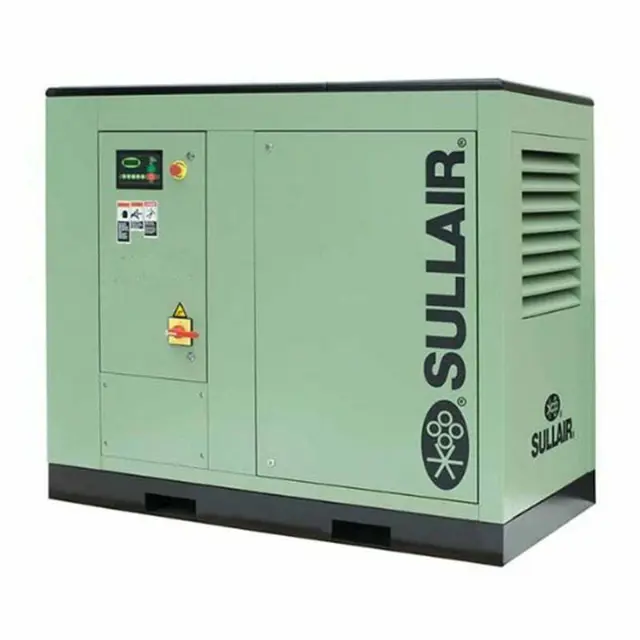

Sullair Industrial Air Compressor 5507V/A

CAUTION: Do not mix different types of lubricants. Mixing lubricants can cause malfunctions or compressor damage and will void the compressor’s warranty.

CAUTION: Contamination of compressor fluids with mineral oil or other fluids can cause foaming, filter plugging, or orifice line obstruction.

Sullair encourages its customers to participate in a fluid analysis program with the fluid suppliers. In some cases, the analysis results suggest a fluid change interval that differs from the User Manual. Contact a Sullair representative for details.

When performing a fluid change or topping off the fill, the proper level should be at half of the sight glass, with the machine off.

Mixing, changing, or adding other lubricants within the compressor unit may void the air-end warranty.

Change the compressor fluid using instructions shown in the Lubrication Guide.

Refer to Figure 3-1 for the fluid fill port location.

Sullair’s 4500P-7500 series compressors are filled and tested at the factory with Sullube lubricant.

Warning: Relieve all pressure from the receiver tank and all compressor lines before starting.

Pressure relieved from the receiver tank and all compressor lines?

Loosen and remove the eight (8) hex head capscrews (M12 x 40mm) from the cover plate.

Lift the cover plate from the receiver tank.

Inspect the receiver tank for rust, contamination, or damage.

Warning: Ensure the compressor is turned off and cooled down before performing any maintenance tasks.

Is the compressor turned off and cooled down?

Clean the return line strainer.

Refer to Maintenance Every 2000 Hours for location.

Sign off on the initial 50 hours compressor maintenance

Warning: Ensure the compressor is turned off and fully depressurized before starting the procedure.

Is the compressor fitted with the standard solenoid condensate drain valve?

If the compressor is not fitted with the standard solenoid condensate drain valve, stop the procedure and report to the maintenance team.

Was the knurled cap from the strainer successfully removed?

Was the strainer screen successfully removed?

Was the screen cleaned and reinstalled?

If the screen is damaged, the strainer assembly must be replaced (P/N 02250171-245).

Sign off on the water condensate drain maintenance

Warning: This maintenance check requires trained personnel with PPE!

Protective grill removed from the adapter housing

Retaining screw located on the outer sleeve loosened

Sleeve slid to one side, exposing the coupling element

Coupling element unwrapped from the coupling jaws

New element installed by wrapping it around the jaws, engaging the cogs on the element into the jaws

Enter the torque applied to the screws (in Nm)

Outer sleeve reinstalled and secured by tightening the two screws to 45 in·lbs (5 Nm)
