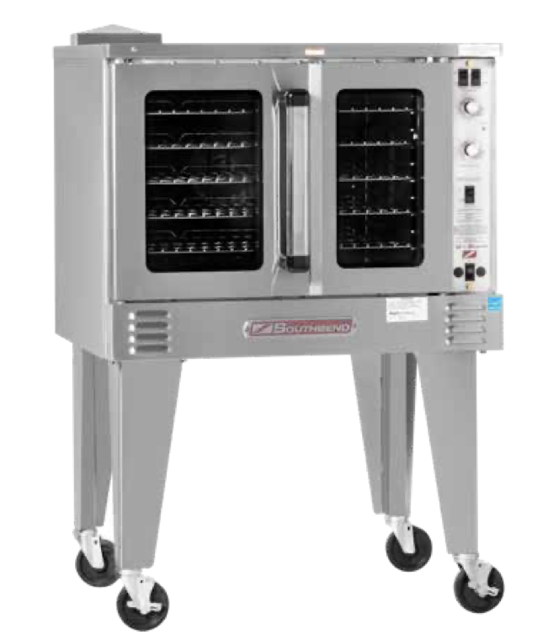

Southbend Gas Convection Oven SLGS/22

Remove lower front panel that covers the door chain mechanism

Check the positioning of the chain on the sprockets

Secure the turnbuckles by tightening their locknuts

Disconnect the power supply to the appliance before cleaning

Is the power switch in the 'OFF' position when cleaning the blower wheel?

Have the unit cleaned and adjusted by a qualified technician

Examine and clean the oven’s venting system

Temperature Controller Check Procedure

Remove all trays and pans from the oven.

Place a thermocouple or a reliable mercury oven-type thermometer at the center of the middle rack.

Turn the oven ON and set the temperature control knob to 400 °F.

Did the amber 'heat on' light go out when the oven temperature was reached?

Allow three cycles for the temperature to stabilize. Enter the number of cycles completed.

Read the thermocouple or thermometer immediately after the light goes out for the third time.

Read the thermocouple or thermometer immediately after it comes on the next time.

Disconnect the power supply to the appliance

Ensure the power switch is in the 'OFF' position before cleaning the blower wheel

Clean around the rear of the motor

Clean the primary air holes in the rear of the oven

Disconnect the power supply to the appliance before cleaning.

Is the power switch in the 'OFF' position when cleaning the blower wheel?

Cleaning Low Temperature Stainless Steel Surfaces

Use ordinary soap and water with a sponge or cloth to clean the surface.

Dry thoroughly with a clean cloth.

Removing Baked-on Grease and Food Splatter

Apply cleanser to a damp cloth or sponge.

Rub cleanser on the metal in the direction of the polishing lines.
