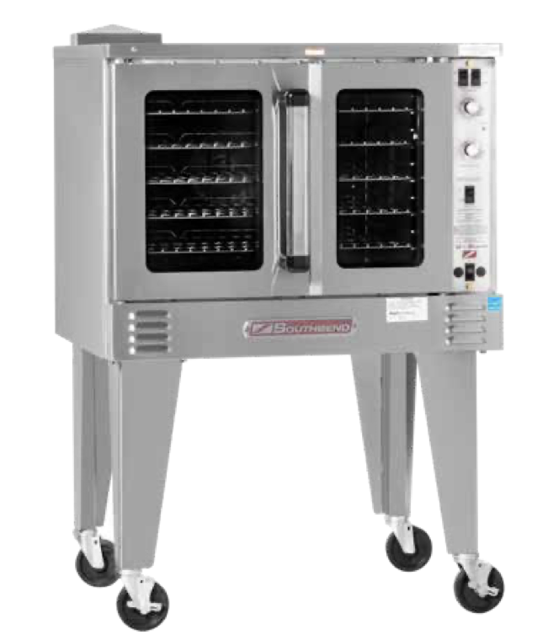

Southbend Gas Convection Oven BGS/22

Turn all thermostats and burner valves to 'OFF' position.

Turn main gas valve to entire unit off.

Remove valve panels and locate 1/8” plug in manifold.

Remove plug and install a fitting appropriate to connect a manometer.

Pressure Reading and Adjustment

Turn on main gas to unit and light pilots.

Disconnect the power supply to the appliance

Ensure the power switch is in the 'OFF' position

Clean around the rear of the motor

Clean the primary air holes in the rear of the oven

Remove lower front panel that covers the door chain mechanism

Check the positioning of the chain on the sprockets

Secure the turnbuckles by tightening their locknuts

Loosen the two set screws that secure the temperature-control knob to the temperature-control shaft.

Remove the knob from the shaft, being careful not to rotate the knob or shaft.

Replace the knob on the shaft so that the indicator mark on the knob points directly at the temperature that was measured at the center of the oven.

Ensure all tools are removed from the oven area.

Disconnect the power supply to the appliance before cleaning.

Is the power switch in the 'OFF' position when cleaning the blower wheel?

Cleaning Low Temperature Stainless Steel Surfaces

Use ordinary soap and water with a sponge or cloth to clean.

Dry thoroughly with a clean cloth.

Removing Baked-on Grease and Food Splatter

Apply cleanser to a damp cloth or sponge and rub in the direction of the polishing lines.

Use SCOTCH-BRITE or STAINLESS scouring pads for stubborn deposits.
