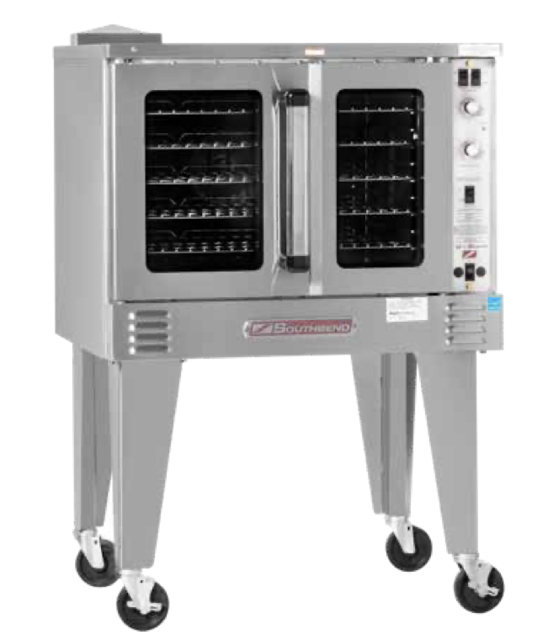

Southbend Gas Convection Oven SLGS/12

Disconnect the power supply to the appliance

Ensure the power switch is in the 'OFF' position before cleaning the blower wheel

Clean around the rear of the motor (vent screen area)

Clean the primary air holes in the rear of the oven

Disconnect the power supply to the appliance before cleaning.

Ensure the power switch is in the 'OFF' position when cleaning the blower wheel.

Cleaning Low Temperature Stainless Steel Surfaces

Use ordinary soap and water with a sponge or cloth to clean normal dirt, grease, and product residue.

Dry thoroughly with a clean cloth.

Removing Baked-on Grease and Food Splatter

Apply cleanser to a damp cloth or sponge and rub in the direction of the polishing lines.

Avoid rubbing with a circular motion to prevent marring the finish.

WARNING! Adjustments and service work may be performed only by a qualified technician.

NOTICE: Warranty will be void if service work is performed by other than a qualified technician.

Loosen the two set screws that secure the temperature-control knob to the temperature-control shaft.

Remove the knob from the shaft, being careful not to rotate the knob or shaft.

Replace the knob on the shaft so that the indicator mark on the knob points directly at the temperature that was measured at the center of the oven.

Is the oven calibration correct after adjustment?

Contact your authorized service agency for reliable service, dependable advice, or other assistance.

Use genuine factory parts for any replacements.

Temperature Controller Check Procedure

Remove all trays and pans from the oven.

Place a thermocouple or a reliable mercury oven-type thermometer at the center of the middle rack.

Turn the oven ON and set the temperature control knob to 400 °F.

Did the amber 'heat on' light go out when the oven temperature was reached?

Allow three cycles for the temperature to stabilize. Enter the number of cycles completed.

Read the thermocouple or thermometer immediately after the light goes out for the third time.

Read the thermocouple or thermometer immediately after the light comes on the next time.

Disconnect the power supply to the appliance before cleaning.

Is the power switch in the 'OFF' position before cleaning the blower wheel?

Turn the power switch to OFF and allow the oven to cool.

Remove the oven-interior racks and rack slide frames.

Wash the racks and rack slides with mild detergent and warm water, then dry thoroughly.

Check for foreign matter on the blades of the blower wheel.

Remove accumulations from the blower blades using a stiff brush, then wash with soap and water.
