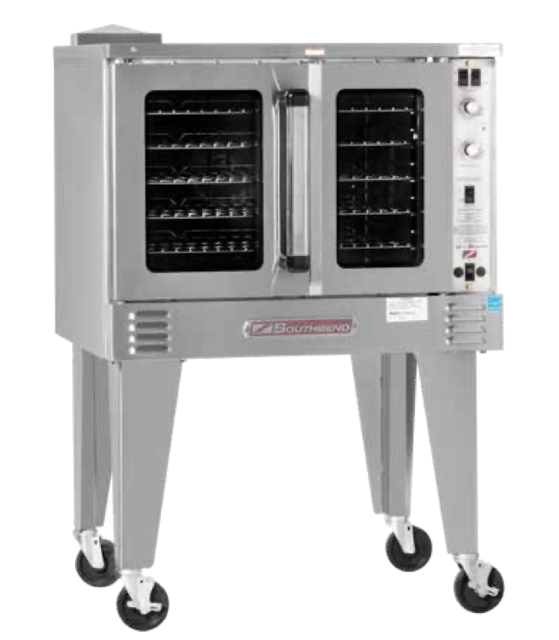

Southbend Gas Convection Oven SLGB/12

Disconnect the power supply to the appliance

Ensure the power switch is in the 'OFF' position when cleaning the blower wheel

Have the unit cleaned and adjusted by a Southbend Authorized Service Agency or another qualified service technician

Examine and clean the oven’s venting system

Turn all thermostats and burner valves to 'OFF' position

Turn main gas valve to entire unit off

Remove valve panels and locate 1/8” plug in manifold

Remove plug and install a fitting appropriate to connect a manometer

Turn on main gas to unit and light pilots

Disconnect the power supply to the appliance before cleaning.

Is the power switch in the 'OFF' position when cleaning the blower wheel?

Cleaning Low Temperature Stainless Steel Surfaces

Use ordinary soap and water with a sponge or cloth to clean.

Dry thoroughly with a clean cloth.

Removing Baked-on Grease and Food Splatter

Apply cleanser to a damp cloth or sponge and rub in the direction of the polishing lines.

Use SCOTCH-BRITE or STAINLESS scouring pads for stubborn deposits.

Disconnect the power supply to the appliance

Ensure the power switch is in the 'OFF' position before cleaning the blower wheel

Clean around the rear of the motor (vent screen area)

Clean the primary air holes in the rear of the oven

WARNING! Adjustments and service work may be performed only by a qualified technician.

NOTICE: Warranty will be void if service work is performed by other than a qualified technician.

Loosen the two set screws that secure the temperature-control knob to the temperature-control shaft.

Remove the knob from the shaft, being careful not to rotate the knob or shaft.

Replace the knob on the shaft so that the indicator mark on the knob points directly at the temperature that was measured at the center of the oven.

Is the oven calibration correct after adjustment?

Contact authorized service agency for assistance if needed.
