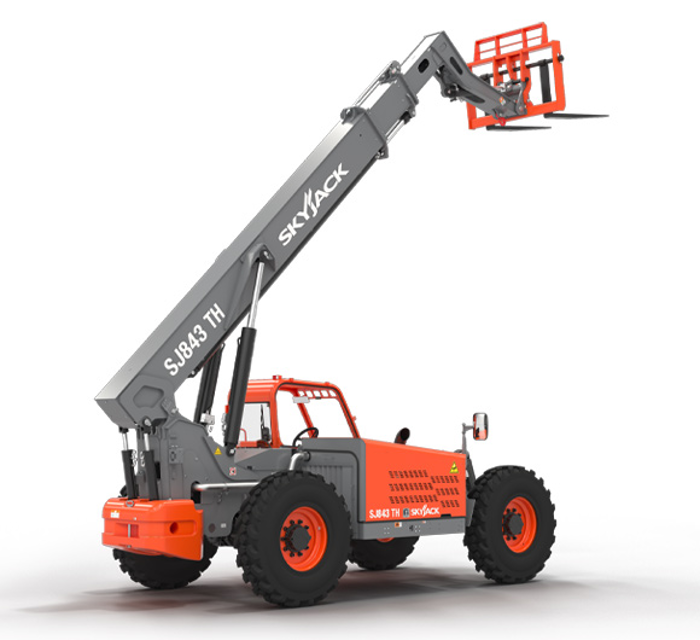

Skyjack Telehandler SJ843 TH

Is the telehandler on a firm level surface?

Is the park brake applied and the engine shut down?

Is the engine compartment cover unlatched and lifted up to gain access to Hydraulic Oil Filter?

Is a suitable container placed under filter to catch any spilled oil?

Is the old filter unscrewed and discarded? Are all traces of the old filter gasket removed from the filter head?

Is a light coating of clean oil applied to the gasket on the new filter?

Is the new filter installed and turned until the gasket contacts the filter head?

Is the new filter tightened an additional 1/2 to 3/4 turn by hand to compress the gasket?

Sign off on the hydraulic oil filter replacement

Inspect for worn, cracked or broken plates

Inspect for wear of plate and pin head

Inspect for stiff links or enlarged plate holes

Inspect for worn or rusted connecting pins

Measure chain elongation. Measurement should be MAXIMUM of new chain length plus 3%

If chain replacement is not necessary; clean the chain in solvent, and dry using low pressure compressed air

Prior to installation, soak the chain in a pan of SAE 40 engine oil or chain and cable lubricant for a MINIMUM of 8 hours to ensure correct lubrication of the pins and links

Sign off on the boom chains inspection

WARNING! Do not over-inflate. Tire may explode causing death or severe injury

Enter the current tire pressure

Is the tire pressure within the recommended range?

Is the tire pressure below 80% of the recommended pressure?

If yes, remove wheel from telehandler to fill the tire

Is the tire placed in a cage and inflated using a clip-on chuck and a remote tire pressure gauge?

Does the tire need to be removed for repairs?

If yes, remove the air pressure from the tire before removing the wheel from the telehandler

Is the tire tread free from damage?

Warning: This procedure requires trained personnel with PPE!

NOTE! The wear pads located at the rear-top and bottom-front of the boom sections wear faster than the other wear pads.

IMPORTANT! Pay attention to high-load slide pads (Front-Lower & Rear-Upper of boom) as most of the weight is exerted on them.

Rear cover from the outer boom removed?

Screw, wear pad, shims, and spacer from the boom removed?

Screws from the wear pads removed using a pry bar under the shims of the side wear pads?

Warning: Proper adjustment of the chains at this interval minimizes the risk of chain failure which could cause extensive damage to other boom components and require extensive labor hours to repair

NOTE! If the chains make noise such as banging on the interior boom parts, or the chain slack identified below is more than the maximum acceptable value, adjustment is necessary

Telehandler parked on firm level ground and parking brake applied

Boom fully extended making sure the extend chain on top of boom assembly is visible

No sagging parts or loose links identified while retracting the boom slowly

NOTE! Chain slack should not exceed 1 inch

IMPORTANT! If the slack is more than 1.00 in., an adjustment is required

Sign off on the boom chains tension check
