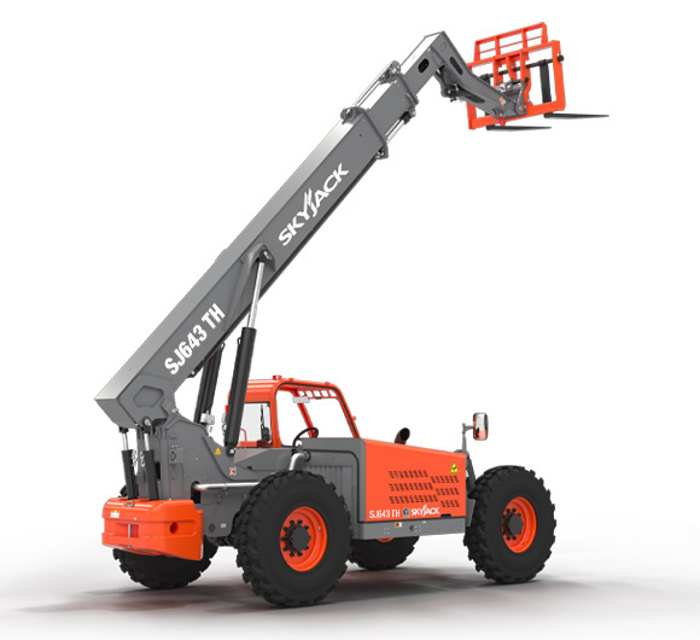

Skyjack Telehandler SJ643 TH

The axles are secured to the frame by an axle pivot assembly on each side of the axle. The pivot assemblies are bolted to the machine frame with axle mounting bolts.

Torque front axle mounting bolts to 320 ft·lb. (434 N·m.)

Torque rear axle mounting bolts to 320 ft·lb (434 N·m.)

Sign off on the torque axle mounting bolts service

Each axle has two integral pivot assemblies which attach the axle to the frame. Each of the four pivot assemblies requires independent lubrication.

There are remote grease fittings for pivot bearing lubrication. The front axle grease fittings are located on the right front frame rail next to the frame level cylinder.

The rear axle remote grease fittings are located beside the right boom lift cylinder.

Wipe dirt and grease from each remote grease fitting.

Remove cap and apply 4 shots of grease to each fitting.

Each axle has two king pins. Each king pin has an upper and a lower grease fitting (total of 4 king pins on each axle).

Apply 4 shots of grease to each fitting.

Sign off on the axle pivot bearings and king pins greasing.

Proper adjustment of the chains at this interval minimizes the risk of chain failure which could cause extensive damage to other boom components and require extensive labor hours to repair

NOTE! If the chains make noise such as banging on the interior boom parts, or the chain slack identified below is more than the maximum acceptable value, adjustment is necessary

Telehandler parked on firm level ground and parking brake applied

Boom fully extended making sure the extend chain on top of boom assembly is visible

No sagging parts or loose links observed while retracting the boom slowly

NOTE! Chain slack should not exceed 1 inch

IMPORTANT! If the slack is more than 1.00 in., an adjustment is required

WARNING! Hot oil or components can burn. Oil must be at normal operating temperature when draining. Avoid contact with hot oil or components. Do not allow oil to drain into the ground.

Axle differential oil at normal operating temperature

Machine parked on a firm level surface, parking brake applied, machine shut off, and allowed to sit for two minutes

Enter the capacity of the container placed under axle drain plugs

Areas around the three (3) drain plugs and level/fill plug cleaned

All three (3) drain plugs removed and oil drained from the differential

Used oil disposed of in accordance with local regulations

Magnetic drain plugs wiped off with a clean rag and installed in the axle

Area around hydraulic breather cleaned without dirt entering the hydraulic tank

Breather removed and cleaned with solvent

Breather blow dried with compressed air

Cleaned breather installed on the tank

Sign off on the breather cleaning
