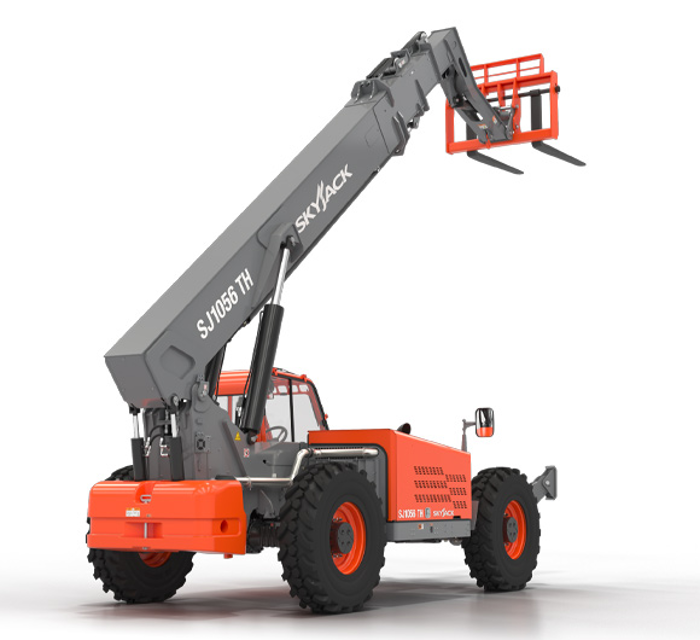

Skyjack Telehandler SJ1056 TH

Warning: Proper adjustment of the chains at this interval minimizes the risk of chain failure which could cause extensive damage to other boom components and require extensive labor hours to repair

NOTE! If the chains make noise such as banging on the interior boom parts, or the chain slack identified below is more than the maximum acceptable value, adjustment is necessary

Telehandler parked on firm level ground and parking brake applied

Boom fully extended making sure the extend chain on top of boom assembly is visible

No sagging parts or loose links observed while retracting the boom slowly

Enter the chain slack measurement

Chain slack does not exceed 1 inch

Sign off on the boom chains tension check

WARNING! Diesel fuel is flammable and may cause death or serious injury. Shut down engine and do not smoke while draining fuel/water separator

Ensure engine is shut down & telehandler is parked on a firm level surface

Prepare a container for draining the fuel/water separator and place it under the separator

Open drain reservoir and allow approximately one cup of fuel and any collected sediment to drain into the container

Close the drain then dispose of the collected liquid in an environmentally safe manner

NOTE! Refer to your local/national environmental regulations on how to dispose of used fuels and other dangerous liquids

Sign off on the fuel/water separator maintenance

WARNING! Always shut off the engine and allow it to cool down before removing the radiator cap. Steam or fluid escaping from the radiator may cause severe injury. Remove cap slowly to relieve pressure. Avoid contact with steam or escaping fluid

NOTE! Machines with an enclosed cab have a heater unit that needs to be flushed separately

Open the radiator cap to ensure proper draining

Place a container capable of holding 5 gallons (17 liters) under the radiator drain plug

Open the drain plug and allow radiator and coolant bottle to drain

NOTE! For machines without an enclosed cab continue from step 10

Close manual heater valve located near the radiator cap/surge tank then disconnect the heater hose connected to it

Locate the motorized heater valve and disconnect the heater hose going to the heater unit

Area around hydraulic breather cleaned

Breather removed and cleaned with solvent

Breather blow dried with compressed air

Cleaned breather installed on the tank

Sign off on the breather cleaning

Each axle has two integral pivot assemblies which attach the axle to the frame. Each of the four pivot assemblies requires independent lubrication.

Axle Pivot Bearings. There are remote grease fittings for pivot bearing lubrication. The front axle grease fittings are located on the right front frame rail next to the frame level cylinder.

The rear axle remote grease fittings are located beside the right boom lift cylinder.

Wipe dirt and grease from each remote grease fitting.

Apply 4 shots of grease to each fitting.

Axle King Pins. Each axle has two king pins. Each king pin has an upper and a lower grease fitting (total of 4 king pins on each axle).

Apply 4 shots of grease to each fitting.

Sign off on the axle pivot bearings and king pins greasing.
