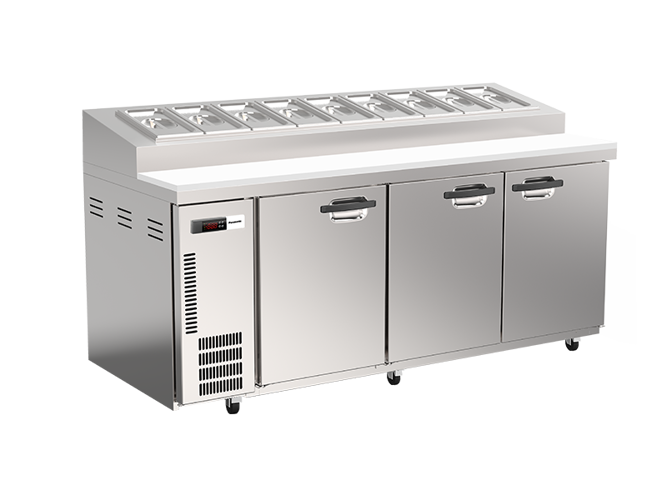

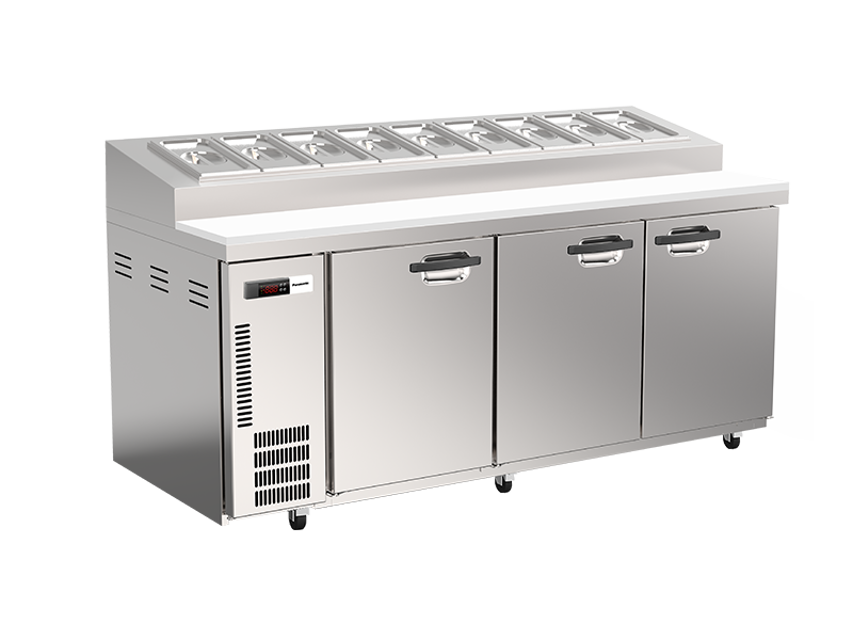

Panasonic Commercial Refrigerator SUR-1871HPZ(AUH)

Warning: Ensure the machine is turned off before starting the procedure

Filter screen dismounted by lifting the grilled door

Filter screen lifted and taken out

Is the filter screen very dirty?

If the filter screen is very dirty, use the neutral detergent to clean

Sign off on the filter screen cleaning

Power line plug completely inserted in the power socket

Any abnormal heating phenomenon

If supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Sign off on the refrigerator after maintenance cleaning

• Use a cloth moistened with mild detergent to wipe off the dirt, then use a cloth moistened with water to wipe, and lastly wipe dry with a dry cloth.

• Do not use cleaning powder, acids, volatile oil, gasoline, thinner, boiled water and other substances that can cause material damage.

• If continue to use it under the condition that it is stained with lactic acid bacteria beverage or seasonings, door edge will be damaged.

• Do not forget to clean the door edge and the surface contacted with edge.;

Disconnect the power plug from the socket.

Hold the under part on two sides with hand and pull forward, turn a little and lift up to remove it.

Use the brush to brush from top to bottom, thoroughly brushing the dust.

If the condenser filter is removed for cleaning, do not directly touch the condenser fin, which may cause injury.

Sign off on the condenser cleaning
