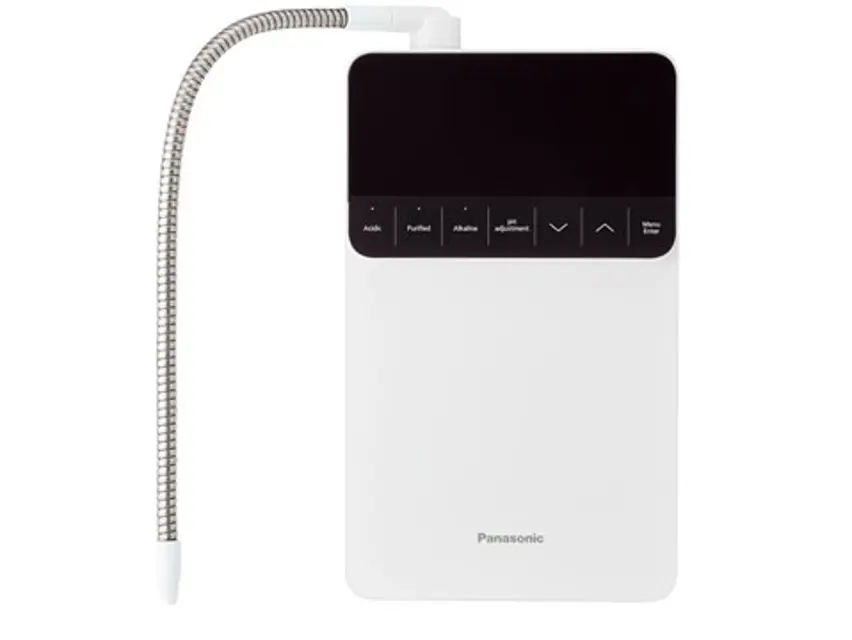

Panasonic Panasonic Alkaline Ionizer TK-AS700 TK-AS700

Main unit, bypass selector, main spout and drain hose

 Soak a soft cloth in water, wring it out well, and use it to wipe the units and parts.

 When the shower part is dirty, remove the stain using a clean toothbrush or other similar tools.

 When the main spout is dirty, remove the stain using a clean cotton swab or other similar tools.

Bypass selector mounting part (filter and water intake)

1 Loosen the nut, remove the bypass selector, and take out the filter.

2 Wash the filter and water intake.

Each time water is stopped, the replacement guideline is displayed for 30 seconds.

If the following screens are displayed, the replacement timing is approaching. Please prepare a new cartridge.

 If the guideline until cartridge replacement is “Remaining approx. 150 L” or less, the screen at left is displayed first, and 10 seconds later the screen at right is displayed with its background color changed to yellow.

Automatic electrode cleaning is performed to remove calcium deposited on the electrode plate

 Do not remove the power plug.

 Water coming out of the main spout and drain hose during automatic electrode cleaning cannot be used. (The water has been used during cleaning.)

 The electrode plate is located in the electrolyzer inside the main unit. Removing the calcium prevents deterioration of electrolysis capability.

After every 10 times or approx. 10 liters use of alkaline ion water and weak acidic water combined

After every use of weak acidic water

Automatic Electrode Cleaning (about 50 seconds)
