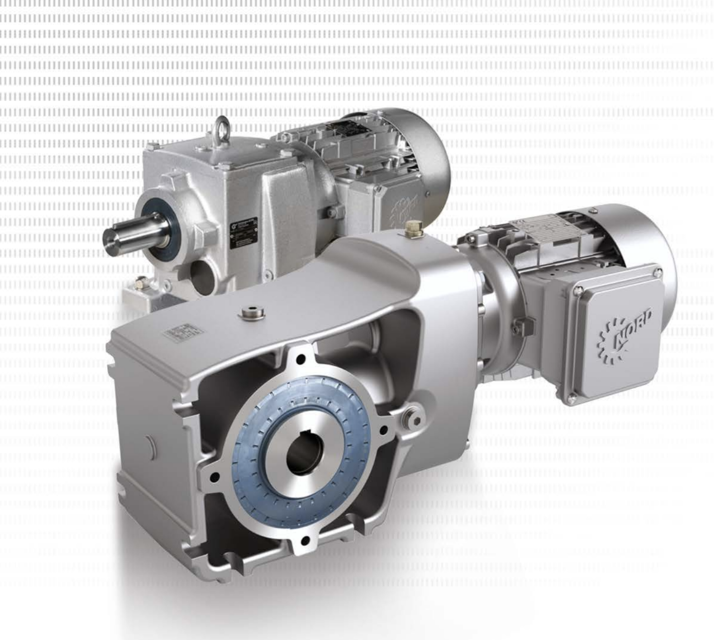

Nord Gear Unit SK 9082.1

Identify the correct lubricant sensor part number

Screw in the new lubricant sensor

Remove excess grease from the adapter

Activate the full lubricant sensor (see chapter 4.3 'Activating the automatic lubricant dispenser')

Ensure the gear unit is at a standstill and has cooled down

Provide protection against accidental activation

Is the oil temperature between 10 °C to 40 °C?

Oil Level Check for Gear Units with Oil Level Screw

Unscrew the oil level screw corresponding to the mounting position

Did a small amount of oil escape during the first check?

Is the oil level at the lower edge of the oil level hole?

Ensure the machine is powered off and secured

Gather necessary tools and materials (including PETAMO GHY 133N grease)

Remove the old radial shaft seal

Check for any damage on the shaft surface

Fill the space between the sealing lip and the protective lip approximately 50% with PETAMO GHY 133N grease

Fit the new radial shaft seal ensuring it does not run in the old wear track

Ensure the workshop is equipped with suitable equipment and qualified personnel.

Is the overhaul being carried out by the NORD Service Department?

Completely dismantle the gear unit.

Component Cleaning and Inspection

Clean all gear unit components.

Check all gear unit components for damage.

Perform visual inspection of the gear unit

Inspect rubber buffers for damage

Inspect hoses for leaks, cuts, tears, porous areas, and chafing

Check for unusual running noises

Re-grease/remove excess grease for applicable options
