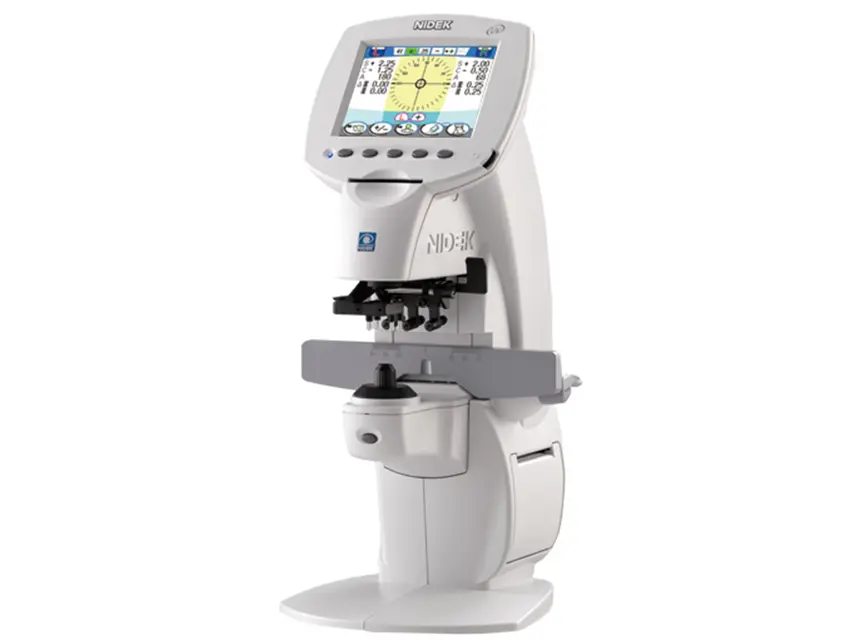

The Nidec Auto Lensmeter LM-600 is a precision optical measurement device designed for accurate lens analysis. This advanced lensmeter offers reliable performance and user-friendly operation, making it essential for optical laboratories and practices. Ensure optimal functionality with proper maintenance and spare parts.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Nidec Auto Lensmeter LM-600
Create an account to install this asset package.
Maintenance Plans for Nidec Auto Lensmeter Model LM-600
Integrate maintenance plans directly into your work orders in MaintainX.
Ink Refilling
Warning: Handle the ink cartridge and ink pad with care to avoid spillage.
Are the markings faint?
Ink Cartridge Refilling
Did you remove the C-ring with tweezers?
Did you insert the new cartridge and spring into the marker holder?
Did you set the C-ring in the groove on the end of the ink cartridge?
Ink Pad Refilling (Optional)
Did you remove the ink pad?
Did you add ink to the pad?
Protective Glass Cleaning
Warning: Dust detected. Please clean lens.
CAUTION! Clean the protective glass under the nosepiece with a blower brush. The dust may include sharp particles. Wiping them without the blower brush damages to the lens
Remove the nosepiece
Clean the protective glass. Remove any dust on the glass with a blower brush.
If any dust remains, wipe gently with a lens cleaning cloth.
NOTE! Take special care not to scratch the protective glass. Flaws on the glass substantially lower the reliability of measurement.
Sign off on the protective glass cleaning
Eye Care Card Slot Cleaning
Warning: Turn off the power of the device before cleaning.
Is the Eye Care card slot visibly dirty?
Upload a photo of the Eye Care card slot before cleaning
Use a commercial contact cleaner or an optional one.
Enter the name of the contact cleaner used
The Eye Care card reader contacts are on the lower surface. Repeatedly insert the contact cleaner with the wiper part (cloth-attached surface) facing downward several times to clean the reader contacts.
Was the cleaning successful?
Upload a photo of the Eye Care card slot after cleaning
Sign off on the cleaning procedure
Printer Cleaning
Warning: This cleaning procedure requires trained personnel!
Open the printer cover and remove the printer paper roll
Put the nozzle of an electric vacuum cleaner on the auto-cutter to vacuum the residue
Do not blow the residue. It may cause failure due to the residue becoming attached to the internal operation mechanism
Set the printer paper as it was
Sign off on the printer cleaning
Auto Lensmeter Exterior Cleaning
CAUTION: Never use an organic solvent such as paint thinner. It may ruin the surface of the device.
CAUTION: Lightly wipe the exterior of the LCD. Scratches or malfunction of the display may result.
CAUTION: Never use a sponge or cloth soaked in water. The water may leak into the inside of the device and cause device malfunction.
Is the cover or panel of the device dirty?
Upload a photo of the dirty cover or panel
Did you wipe the dirty cover or panel with a soft cloth?
For severe stains, did you immerse the cloth in a neutral detergent, wring well, and wipe?
Did you finally wipe with a dry and soft cloth?
Sign off on the cleaning procedure
Parts for Nidec Auto Lensmeter LM-600
Access the parts list for your equipment in MaintainX.
Ink Cartridge
31001-3371
Ink Cartridge
31001-3372
Ink For Ink Pad
82001-IK004
Printer Paper
31001-E031
Contact Cleaner
34086-7110
Ink Cartridge
31001-3371
Ink Cartridge
31001-3372
Ink For Ink Pad
82001-IK004
Printer Paper
31001-E031
Contact Cleaner
34086-7110
Ink Cartridge
31001-3371
Ink Cartridge
31001-3372
Ink For Ink Pad
82001-IK004
Printer Paper
31001-E031
Contact Cleaner
34086-7110
