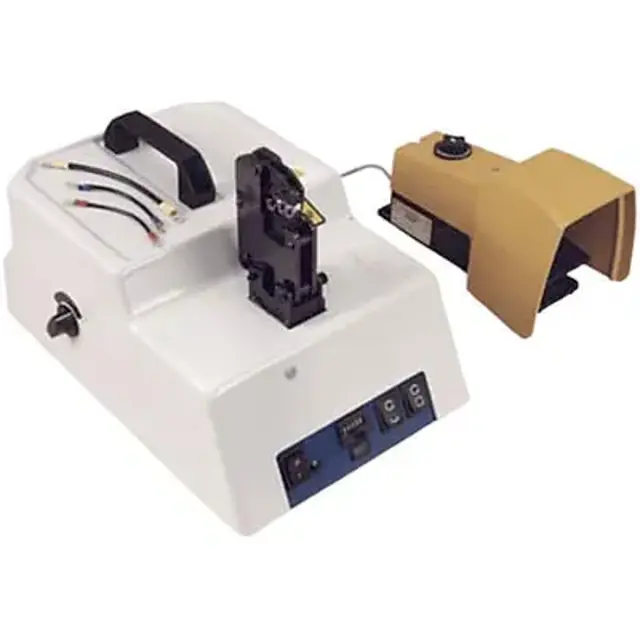

AMP SDE Electric Bench Terminator 1490076–1

DANGER! To avoid personal injury, ALWAYS disconnect the SDE Electric Bench Terminator before performing any maintenance or inspection.

Tyco Electronics recommends that a maintenance and inspection program be performed periodically to ensure dependable and uniform terminations.

The SDE Electric Bench Terminator should be inspected monthly.

Frequency of inspection depends on: The care, amount of use, and handling of the terminator. The type and size of the product crimped. The degree of operator skill. The presence of abnormal amounts of dust or dirt. Your own established standards.

It is recommended that all moving parts (particularly the movable driving parts) of the tool be lubricated from time to time. Lubrication not only keeps the tooling operating efficiently, it protects the tooling from humidity.

NOTE! For die closure inspections and plug gage dimensions, as well as inspections of the crimp areas, and crimping die maintenance, refer to the appropriate die assembly instruction sheet.

Cleaning: Remove dust, moisture, and other contaminants with a clean soft brush, or a soft, lint–free cloth. Do NOT use objects or cleaning materials that could damage tooling. Re–lubricate the sliding surfaces of the head assembly.

Visual Inspection: Inspect the tool head assembly for missing heads or screws. Check all movable drive parts and tool head surfaces for wear.

Inspect the crimp areas in the die assembly for flattened, chipped, or broken areas. Although the dies may gage within permissible limits, worn or damaged die closure surfaces may affect the quality of the crimp.

Warning: Only use high quality grease for lubrication

Select the frequency of head assembly usage

Lubricate the head assembly according to the selected frequency

Excess grease wiped from the head assembly?

Grease transferred from die closure area?

Sign off on the lubrication process
