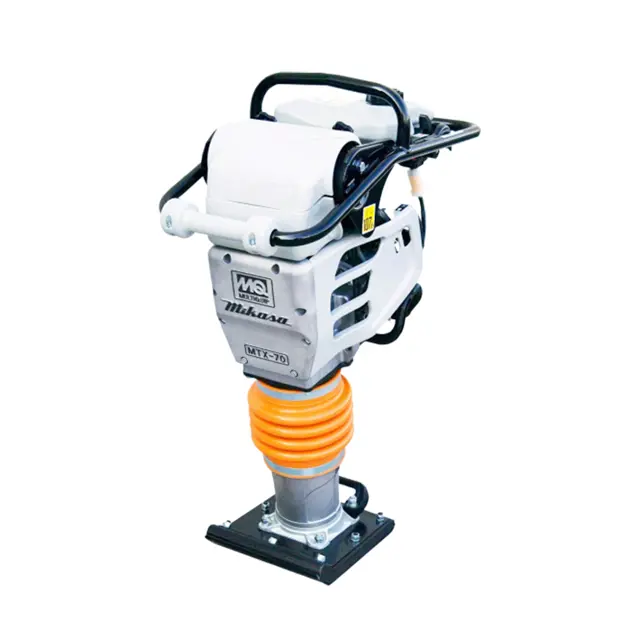

Mikasa Tamping Rammer MTX-70HDR

Warning: Ensure the machine is turned off and cooled down before starting the procedure

Upper air cleaner cover removed

Is the secondary element under the primary element dirty?

If the secondary element is dirty, proceed to the next steps

Secondary element washed with neutral detergent

Sign off on the air cleaner element cleaning

Inspect Appearance for Deformation, Breakage, Crack, Dirt

Inspect Air cleaner for Dust, Dirt, Deformation

Inspect Bolts, nuts for Loose or missing parts

Inspect Handle for Deformation, Breakage, Crack

Inspect Shock absorber for Deformation, Breakage, Crack

Inspect Engine oil for Leaks, Oil level, Dirt

Inspect Main body lubrication oil for Leaks, Oil level, Dirt

Inspect Fuel tank for Leaks, Fuel level, Dirt

Inspect Fuel system for Leaks, Wear, Loose parts

• Remove the upper air cleaner cover on the main body. Loosen and remove the 2 Phillips screws that hold the cover on the air cleaner assembly.

a. Air cleaner element (Primary)

• If the primary element is dirty, wash it with gasoline or kerosene. Then, add 25 to 30cc of the engine oil SAE10W-30 to it and impregnate evenly by squeezing lightly.
