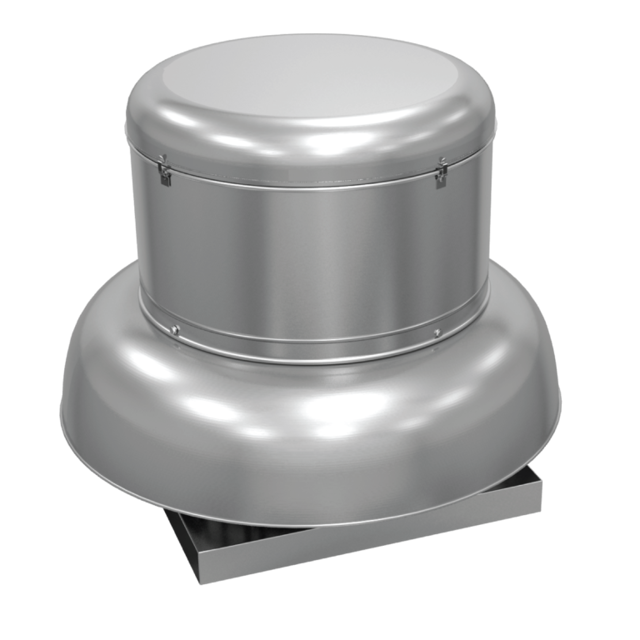

Loren Cook Company AC Exhauster ACE-D

Warning: This procedure requires trained personnel with PPE!

The correct wheel-to-inlet clearance is critical to proper fan performance.

Verify the wheel-to-inlet clearance before initial start-up.

Adjust the overlap by loosening the wheel hub and moving the wheel along the shaft to obtain the correct value.

Check if the wheel hub has been loosened and the wheel moved along the shaft.

A uniform radial gap is obtained by loosening the bearing bolts and set screws which will allow for correct repositioning.

Check if the bearing bolts and set screws have been loosened.

Sign off on the Fan Wheel-to-Inlet Clearance Adjustment

Warning: Handle the AC fan and accessories with care during inspection

AC fan and accessories free of damage

AC fan wheel turns freely and does not bind when turned by hand

Dampers (if included) have free operation of all moving parts

Record any visible sign of damage on the Delivery Receipt

Sign off on the initial AC fan inspection

Warning: Stop the fan before inspection

Fan operational after 24 hours?

If fan is not operational, report the issues to the maintenance team and stop the procedure

If belt tension is not satisfactory, adjust and tighten as necessary

Inspection of the fan should be conducted at the first 8 hour interval of satisfactory operation.

During the inspections, stop the fan and inspect as instructed.

Inspect belt alignment and tension. Adjust and tighten as necessary.;

Warning: Stop the fan before inspection

Bolts inspected and tightened as necessary?

Setscrews inspected and tightened as necessary?

Motor mounting bolts inspected and tightened as necessary?
