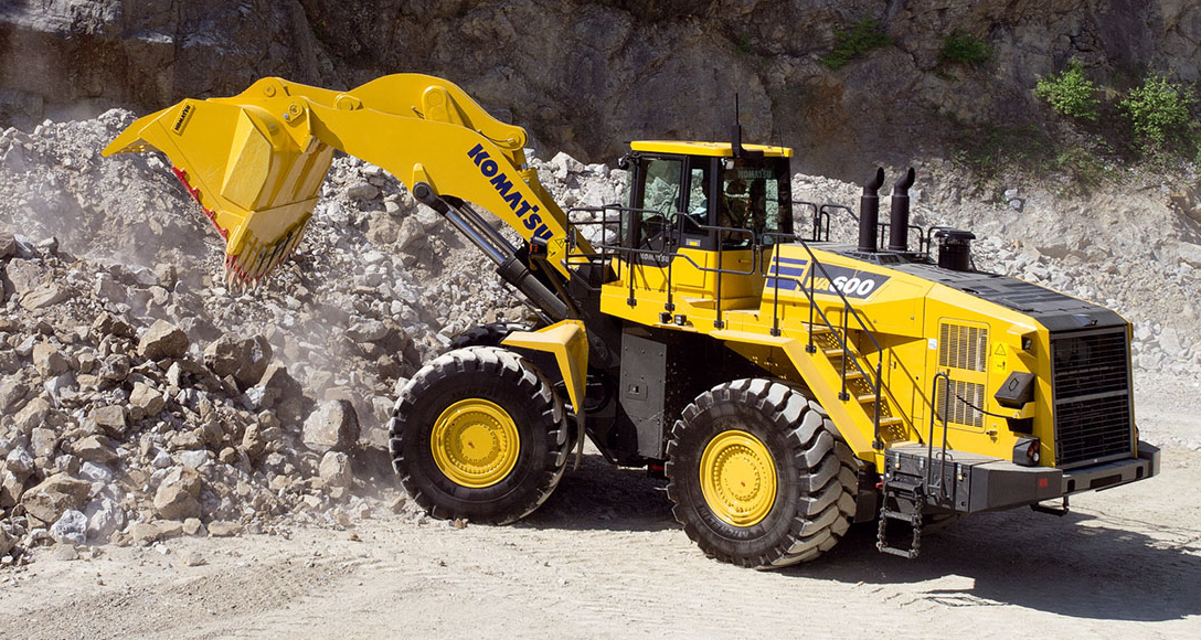

Komatsu Wheel Loader WA600-8

Warning: This maintenance check requires trained personnel with PPE!

Lubrication of work equipment done?

Lubrication of steering cylinder done?

For details of the method of replacement or maintenance, see EVERY 100 HOURS MAINTENANCE.

Sign off on the wheel loader maintenance

Warning: This maintenance check requires trained personnel with PPE!

Warning: Immediately after the engine is stopped, its parts and oil are still very hot and may cause burn injury. Accordingly, wait until they have cooled down before starting the work.

Warning: When removing the oil filler cap, the oil may spout out. Turn it slowly to release the internal pressure, then remove it.

Warning: When removing filter cover, keep pressing the filter cover by your hand and remove it. Otherwise, the filter cover may jump out and it may cause injury if the mounting bolt of the filter cover is removed carelessly since the filter cover presses the spring.

Set the bottom of bucket to be level, and lower the work equipment to the ground.

Set the parking brake switch to ON position (operate).

Open cover (1) at the right side of cab, and fix it with the bar.

Remove the cap of oil filler port (F) and plug (2) of the filter case.

METHOD FOR DRAINING WATER AND SEDIMENT FROM FUEL TANK

Container to receive drained fuel

1. Place a container to receive drained fuel under drain valve (1) on the right side of the fuel tank.

2. Open drain valve (1), and drain the sediment and water accumulated at the bottom together with fuel.

3. When only clean fuel flows out, close drain valve (1).;

Ask your Komatsu distributor for replacement of the DEF hose

Method for replacing fuel spray prevention cap on fuel doser piping

Ask your Komatsu distributor for replacement of the fuel spray prevention cap on fuel doser

For safe dismantling of the machine at the end of service life, please contact your Komatsu distributor

Sign off on the maintenance procedure

Warning: This maintenance check requires trained personnel with PPE!

Warning: Do not use the battery if the battery electrolyte level is below LOWER LEVEL line.

Warning: Battery electrolyte is dangerous object. If it gets in your eyes or on your skin, wash it off with a large amount of water and consult a doctor.

Warning: Do not add the electrolyte to the battery exceeding UPPER LEVEL line.

Warning: If the battery is wiped with a dry cloth, static electricity may cause a fire or explosion.

Warning: When using compressed air, there is a danger that dirt may scatter and cause personal injury. Always wear protective equipment such as protective eyeglasses and dust mask.

Battery electrolyte level is between UPPER LEVEL line and LOWER LEVEL line.

Battery cap vent hole is clean and cap is securely closed.

Battery box cover is securely closed.
