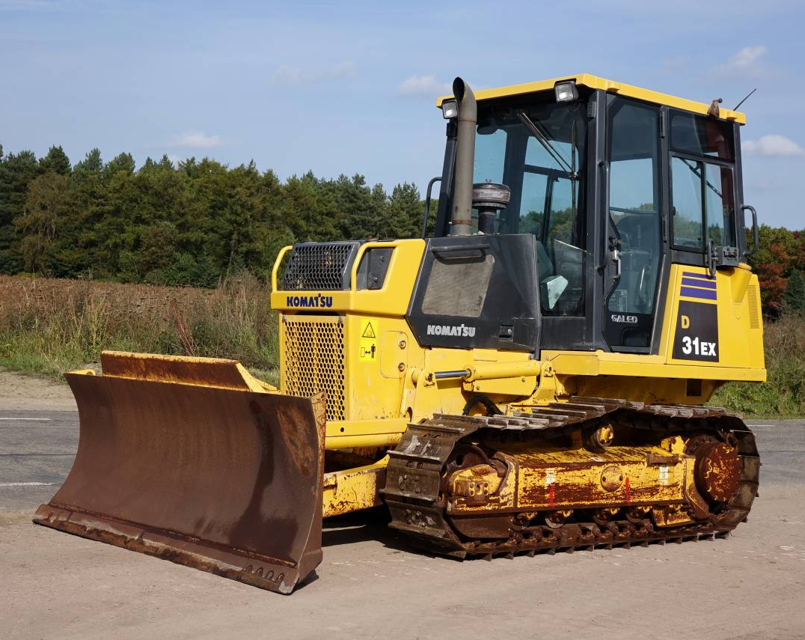

Komatsu Bulldozer D31EX-21

If dirt or sand is found sticking due to work in the soft ground, carry out greasing every 10 hours of operation.

1. Lower the blde to the ground, then stop the engine.

2. Using a grease pump, pump in grease through the grease fittings shown by arrows.

3. After greasing, wipe off any old grease that was pushed out.

(1) Lift cylinder bottom pin (2 places)

(2) Lift cylinder head pin (2 places)

CHANGE OIL IN HYDRAULIC TANK, REPLACE OIL FILTER CARTRIDGE AND CLEAN SUCTION STRAINER

• The parts and oil are at high temperature after the engine is stopped, and may cause burns. Wait for the temperature to go down before starting the work.

• When removing the oil filler cap, turn it slowly to release the internal pressure, then remove it.

1. Lower the blade to the ground securely, stop the engine and slowly turn the cap of oil filler (F) to release the internal pressure. Then, remove the cap.

2. Remove the cover (1) at the bottom of the hydraulic tank.

3. Place a container to receive drained oil on the track under the drain hole.

4. Loosen drain valve (2) at lower side of hydraulic tank to drain the oil, then tighten valve (2) again.

CHECK, CLEAN AND REPLACE AIR CLEANER ELEMENT

q If inspection, cleaning, or maintenance is carried out with the engine running, dirt will get into the engine and damage it. Always stop the engine before carrying out these operations.

q When using compressed air, there is danger that dirt may be blown around and cause serious injury.

Always use safety glasses, dust mask, and other protective equipment.

1. Open engine side cover on the left side of machine.

2. If the yellow piston at the display portion of dust indicator (1) becomes red (7.5 kPa), clean the element.

If any abnormality is found, describe it here

Contact your Komatsu distributor for repairs or replacement if any abnormality is found.

Sign off on the 4000 Hourly Bulldozer Maintenance

WARNING: The oil is at high temperature immediately after the machine has been operated. Wait for the oil to cool down before starting the operation. If there is still pressure remaining inside the case, the oil or plug may fly out. Loosen the plug slowly to release the pressure.

Set the TOP mark at the top, with the UP mark and plug (P) perpendicular to the ground surface.

Set a container under plug (P) to catch the oil.

Remove plugs (P) and (F) with the handle and drain the oil.

Check the O-rings in the plugs for damage. If necessary, replace with new ones.

Add oil through the hole of plug (F).

When oil begins to overflow from the plug (F) hole, install plug (F).
