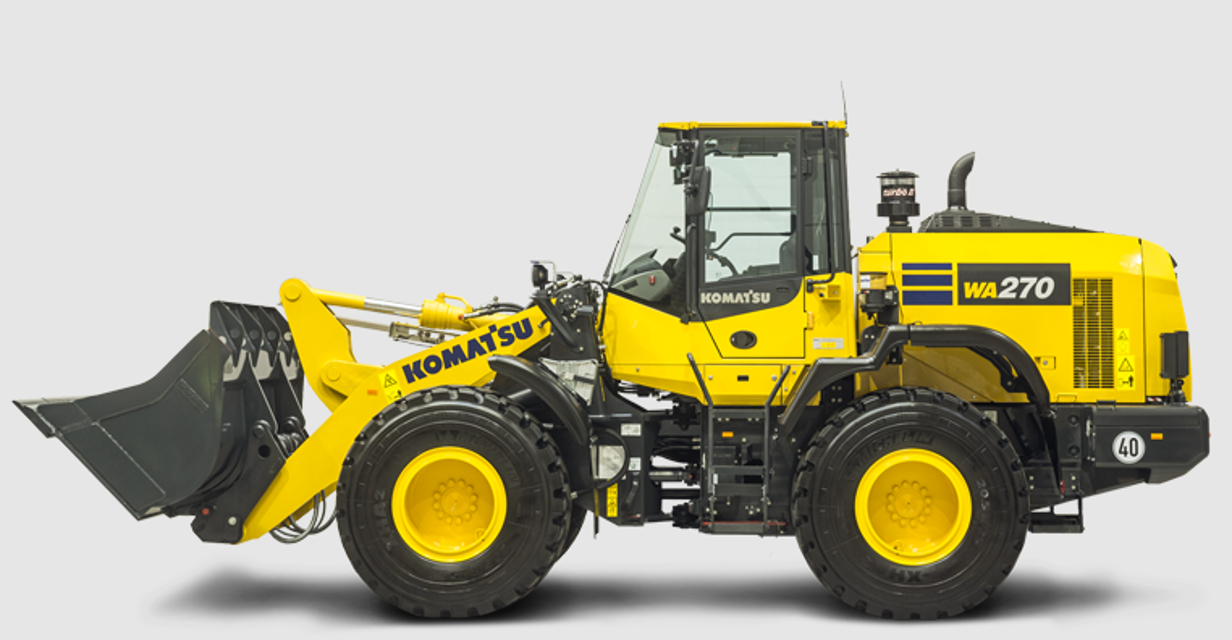

Komatsu Wheel Loader WA270-8

METHOD FOR LUBRICATING STEERING CYLINDER PIN

Steps for lubricating steering cylinder pin

METHOD FOR CHECKING BATTERY ELECTROLYTE LEVEL

Steps for checking battery electrolyte level

METHOD FOR CHECKING ELECTROLYTE LEVEL FROM SIDE OF BATTERY

Steps for checking electrolyte level from side of battery

METHOD FOR CHECKING ELECTROLYTE LEVEL WHEN IT IS IMPOSSIBLE TO CHECK FROM SIDE OF BATTERY

Steps for checking electrolyte level when it is impossible to check from side of battery

METHOD FOR TESTING PARKING BRAKE

Until first 100 hours operation, perform the following maintenance every 10 hours.

• Lubrication of work equipment

• Lubrication of steering cylinder pin

For details of the method of replacement or maintenance, see EVERY 100 HOURS MAINTENANCE and EVERY 250 HOURS MAINTENANCE.;

Warning: Contact your Komatsu distributor for the following steps

METHOD FOR CHANGING OIL IN ENGINE OIL PAN, REPLACING ENGINE OIL FILTER CARTRIDGE

• Immediately after the engine is stopped, its parts and oil are still very hot, and may cause burn injury. Wait for the temperature to go down, and then start the work.

• When removing the oil filler cap, the oil may spout out. Turn it slowly to release the internal pressure, then remove it carefully.

• Container to catch drained oil

1. Open the engine side cover (1) on the right side of the machine.

METHOD FOR DRAINING WATER AND SEDIMENT FROM FUEL TANK

Container placed under drain valve (1) on the left side of the fuel tank

Drain valve (1) on the left side of the fuel tank opened

Sediment and water drained from the bottom of the fuel tank
