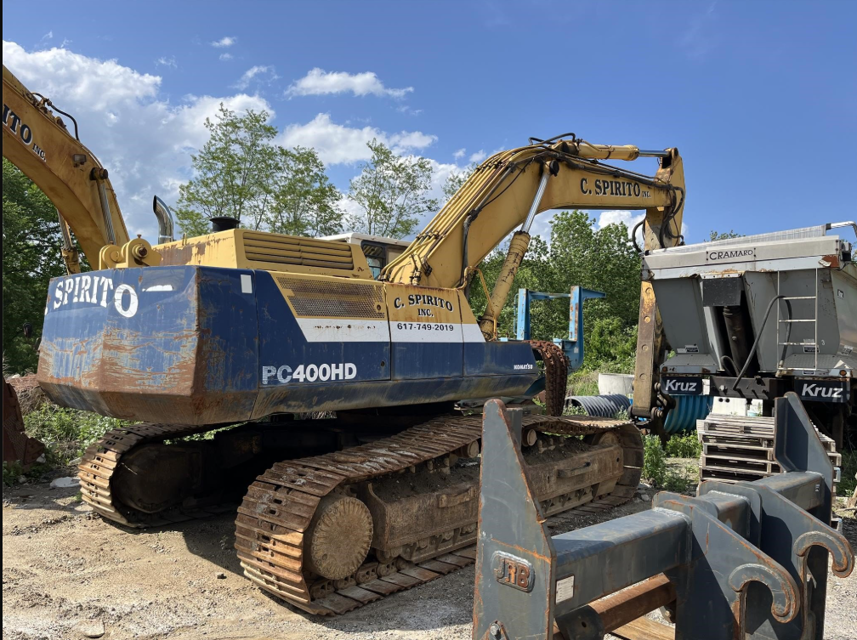

The Komatsu Hydraulic Excavator PC400HD-5 is a robust and versatile machine designed for heavy-duty construction and excavation tasks. Known for its reliability and performance, this excavator is ideal for various applications, ensuring efficiency and productivity on job sites.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Komatsu Hydraulic Excavator PC400HD-5

Create an account to install this asset package.

Maintenance Plans for Komatsu Hydraulic Excavator Model PC400HD-5

Integrate maintenance plans directly into your work orders in MaintainX.

Initial 250 Hours Hydraulic Excavator Maintenance

Warning: This maintenance check requires trained personnel with PPE!

Has the machine been operated for 250 hours?

If the machine has not been operated for 250 hours, stop the procedure

Fuel filter cartridge replaced?

Engine valve clearance checked and adjusted?

For details of the method of replacing or maintaining, see the section on EVERY 500 HOURS and 2000 HOURS SERVICE.

Sign off on the initial 250 hours hydraulic excavator maintenance

Run this procedure

100 Hourly Hydraulic Excavator Maintenance

24.4.1 LUBRICATING

1. Set the work equipment in the greasing posture below, then lower the work equipment to the ground and stop the engine.

2. Using a grease pump, pump in grease through the grease fittings shown by arrows.

3. After greasing, wipe off any old grease that was pushed out.

1. Boom cylinder foot pin (2 points)

2. Boom foot pin (2 points);3. Boom cylinder rod end (2 points)

4. Arm cylinder foot pin (1 point)

5. Boom-Arm coupling pin (1point)

6. Arm cylinder rod end (1 point)

Run this procedure

500 Hourly Hydraulic Excavator Maintenance

REPLACE FUEL FILTER CARTRIDGE

CHECK SWING PINION GREASE LEVEL, ADD GREASE

CLEAN AND INSPECT RADIATOR FINS, OIL COOLER FINS

Sign off on the 500 Hourly Hydraulic Excavator Maintenance

Run this procedure

250 Hourly Hydraulic Excavator Maintenance

24.5.1 CHECK OIL LEVEL IN FINAL DRIVE CASE, ADD OIL

Set the TOP mark at the top, with the UP mark and plug perpendicular to the ground surface.

Remove plug F using the handle. When the oil level reaches a point 10 mm below the bottom of the plug hole, the correct amount of oil has been added.

If the oil level is too low, install plug F, operate the travel levers, and drive forward or in reverse to rotate the sprocket one turn.

If the oil level is still too low, add engine oil through the hole in plug F until the oil overflows.

After checking, install plug F.

24.5.2 CHECK LEVEL OF BATTERY ELECTROLYTE

Open the battery box cover on the right side of the machine.

Remove cap 1, and check that the electrolyte is at the specified level (10 to 12 mm (0.40 to 0.47 in) above the plate). If the electrolyte level is low, add distilled water to the specified level.

Run this procedure

4000 Hourly Hydraulic Excavator Maintenance

24.9.1 CHECK WATER PUMP

Check for oil leakage

Check for water leakage

Check for clogging of the drain hole

Report any abnormalities found

Sign off on the water pump check

Run this procedure
