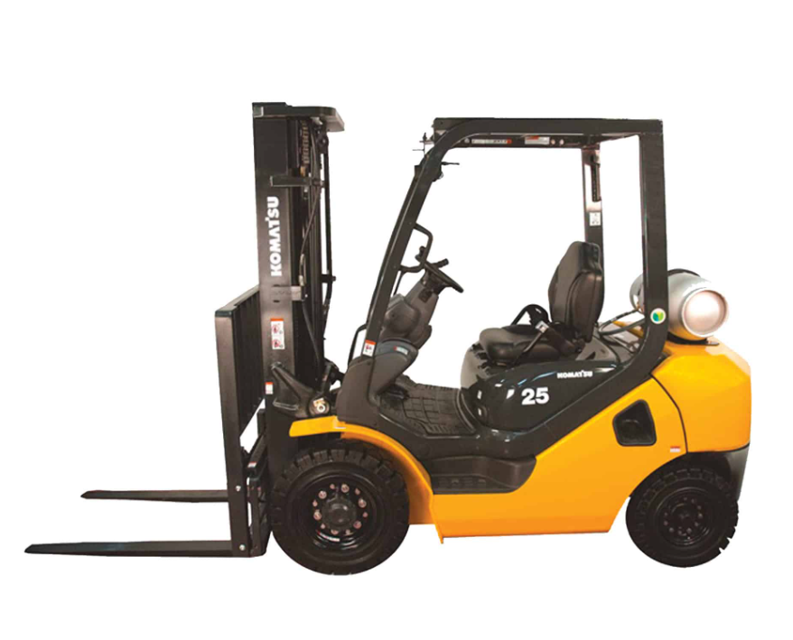

Komatsu Komatsu Forklift Trucks FG28HTLS-16 FG28HTLS-16

6.2 PERIODIC INSPECTION AND MAINTENANCE CHECK POINTS

1. Check the following by operating the F/R lever:

2. Check transmission for abnormal sound.

3. Check transmission for oil leakage.

Replace the packing if oil stains become oil droplets.

4. Check transmission oil for proper amount level.

Park the truck on flat and even ground surface and check with oil level gauge.

12. MASTS E-MS SERIES LIMITED FREE LIFT 2-STAGE MAST

Perform the following at the beginning of each work shift:

1. Extend the carriage a few inches off the ground and make sure the chains are under equal tension. Refer to Section 5.6-3 for chain adjustment.

2. Extend the mast to its fullest height to make sure the mast rails and carriage extend freely without binding.

3. While the mast is extended, inspect the upright rails for proper lubrication. Refer to Section 2.4-3 for rail lubrication.

4. Make sure the internal reeving hoses (if equipped) travel evenly in the hose guides. Adjust the hose ends if required. Tighten the fittings making sure they do not twist.

E-MD SERIES FULL FREE LIFT 2-STAGE MAST

Perform the following at the beginning of each work shift:

1. Extend the carriage a few inches off the ground and make sure the chains are under equal tension. Refer to Section 5.6-3 and 5.6-4 for chain adjustment.

12. MASTS E-MS SERIES LIMITED FREE LIFT 2-STAGE MAST

1. Inspect the rollers for excessive wear or damage. Rollers with visible flat spots or cracks should be re- placed.

2. Inspect the roller bearings by turning the rollers on their shafts. Rollers with roughness or noticeable restrictions to turning should be replaced.

3. Inspect all welds between the carriage side plates and the carriage fork bars. If any welds are cracked, replace the carriage.

4. Inspect the roller stub shafts. If they are damaged or if there are cracks at the base of the stub shafts, the carriage must be replaced or repaired. Contact Komatsu Forklift for repair procedures.

E-MD SERIES FULL FREE LIFT 2-STAGE MAST

1. Inspect the rollers for excessive wear or damage. Rollers with visible flat spots or cracks should be replaced.

2. Inspect the roller bearings by turning the rollers on their shafts. Rollers with roughness or noticeable restrictions to turning should be replaced.

3. Inspect all welds between the carriage side plates and the carriagefork bars. If any welds are cracked, replace the carriage.

12. MASTS E-MS SERIES LIMITED FREE LIFT 2-STAGE MAST

1. Inspect the load rollers for excessive wear or damage. Rollers with visible flat spots or cracks should be replaced. See Figure 25a.

2. Inspect the load roller bearings by turning the rollers on their shafts. Rollers with roughness or noticeable restrictions to turning should be replaced.

3. Inspect the load roller stub shafts. If they are damaged or have cracks at the base, the upright mast must be re- placed or repaired.

4. Inspect the outer upright thrust plugs. If the wear surface is worn to less than 1/16 in. (1.5 mm), they should be replaced.

5. Inspect the hoist chains as described in Section 5.6-1.

E-MD SERIES FULL FREE LIFT 2-STAGE MAST

1. Inspect the load rollers for excessive wear or damage. Rollers with visible flat spots or cracks should be replaced. See Figure 39.

2. Inspect the load roller bearings by turning the rollers on their shafts. Rollers with roughness or noticeable restrictions to turning should be replaced.

5.1.3 TORQUE CONVERTER ASSEMBLY

See drawing of “TORQUE CONVERTER ASSEMBLY” on page 5-4 for structure, which consists of following elements.

• Power Joint (Input Plate, Turbine Hub)

• Relief Valve (Main, Torque Converter Inlet Port, Lubrication)
