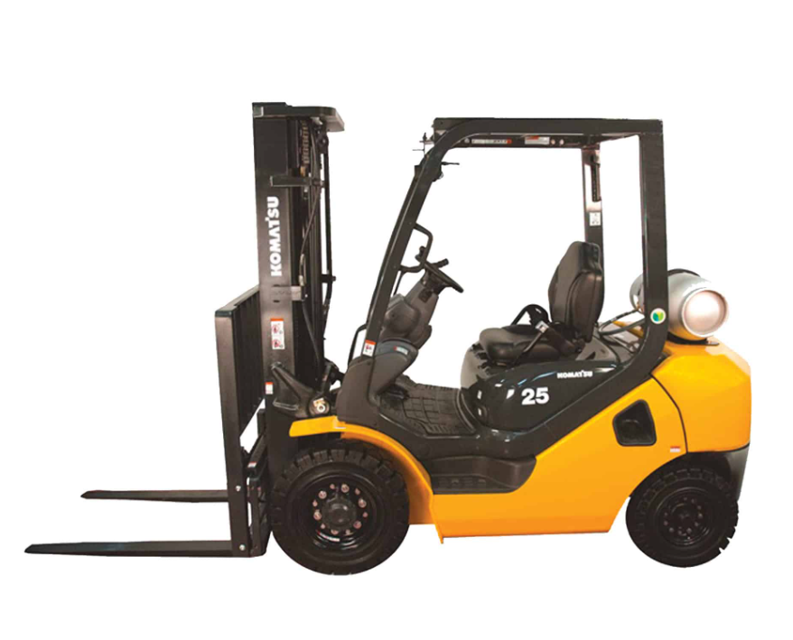

Komatsu Forklift Trucks FG25HTUS-16

12. MASTS E-MS SERIES LIMITED FREE LIFT 2-STAGE MAST

1. Inspect the rollers for excessive wear or damage. Rollers with visible flat spots or cracks should be re- placed.

2. Inspect the roller bearings by turning the rollers on their shafts. Rollers with roughness or noticeable restrictions to turning should be replaced.

3. Inspect all welds between the carriage side plates and the carriage fork bars. If any welds are cracked, replace the carriage.

4. Inspect the roller stub shafts. If they are damaged or if there are cracks at the base of the stub shafts, the carriage must be replaced or repaired. Contact Komatsu Forklift for repair procedures.

E-MD SERIES FULL FREE LIFT 2-STAGE MAST

1. Inspect the rollers for excessive wear or damage. Rollers with visible flat spots or cracks should be replaced.

2. Inspect the roller bearings by turning the rollers on their shafts. Rollers with roughness or noticeable restrictions to turning should be replaced.

3. Inspect all welds between the carriage side plates and the carriagefork bars. If any welds are cracked, replace the carriage.

6.2 PERIODIC INSPECTION AND MAINTENANCE CHECK POINTS

1. Check the following by operating the F/R lever:

2. Check transmission for abnormal sound.

3. Check transmission for oil leakage.

Replace the packing if oil stains become oil droplets.

4. Check transmission oil for proper amount level.

Park the truck on flat and even ground surface and check with oil level gauge.

5.1.3 TORQUE CONVERTER ASSEMBLY

See drawing of “TORQUE CONVERTER ASSEMBLY” on page 5-4 for structure, which consists of following elements.

• Power Joint (Input Plate, Turbine Hub)

• Relief Valve (Main, Torque Converter Inlet Port, Lubrication)

3.2 PERIODIC INSPECTION AND MAINTENANCE CHECK POINTS

Select dry and even surface road, drive at full speed and stop abruptly to check the following:

CAUTION: The factory-set adjustments may not be correct for your truck.

Inspect all chains for lubrication.

Inspect all chains for any visible damage.

Inspect the main lift chain adjustment for proper tension and upright position.

Inspect the free lift chain adjustment for proper tension and carriage position.

Inspect for lubrication in the Mast upright channels.

Sign off on the mast inspection
